ENCLOSURE FOR CONNECTORS: HDC; SIZE 3A; HAN® A,HAN® EMC; 21X21MM

Search across all available documentation for this part.

Active

HARTING Technology Group

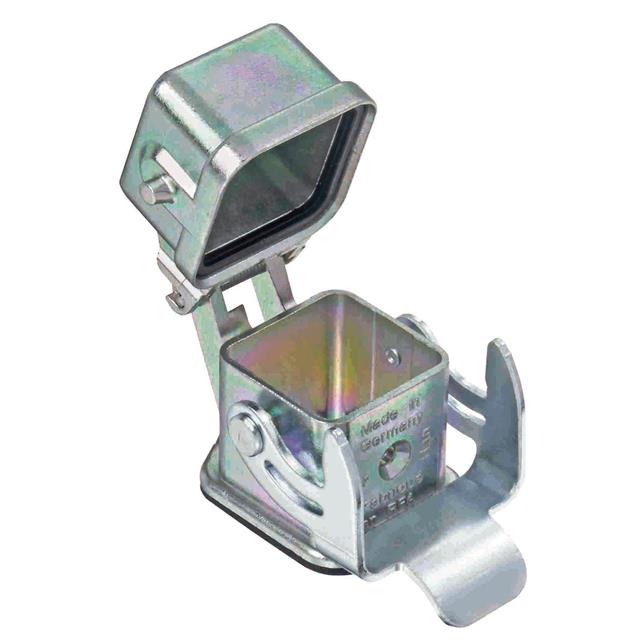

ENCLOSURE FOR CONNECTORS: HDC; SIZE 3A; HAN® A,HAN® EMC; 21X21MM

Technical Specifications

Parameters and characteristics for this part

Specification	09620030307

Connector Type	Base - Panel Mount
Features	Cover
Housing Color	Silver
Housing Material	Zinc, Die Cast
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	3 A
Size / Dimension [x]	28 mm
Size / Dimension [x]	1.102 in
Size / Dimension [y]	1.575 in
Size / Dimension [y]	40 mm
Size / Dimension [z]	23 mm
Size / Dimension [z]	0.906 in
Style	Bottom Entry

Part	Lock Location	Connector Type	Features	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size	Ingress Protection	Housing Color	Style	Operating Temperature [Max]	Operating Temperature [Min]	Housing Material	Size / Dimension [y]	Size / Dimension [z]	Thread Size
HARTING Technology Group 09620030307	Locking Clip on Base Bottom	Base - Panel Mount	Cover	28 mm	23 mm	1.575 in	40 mm	0.906 in	1.102 in	3 A	IP65 - Dust Tight Water Resistant	Silver	Bottom Entry	125 °C	-40 °C	Zinc Die Cast
HARTING Technology Group 09620030102	Locking Clip (1) on Hood	Hood		24.2 mm		0.953 in		1.89 "	0.953 in	3 A	IP44	Gray	Top Entry	125 °C	-40 °C	Zinc Die Cast	24.2 mm	48 mm	PG13.5
