09620030102

Active

HARTING Technology Group

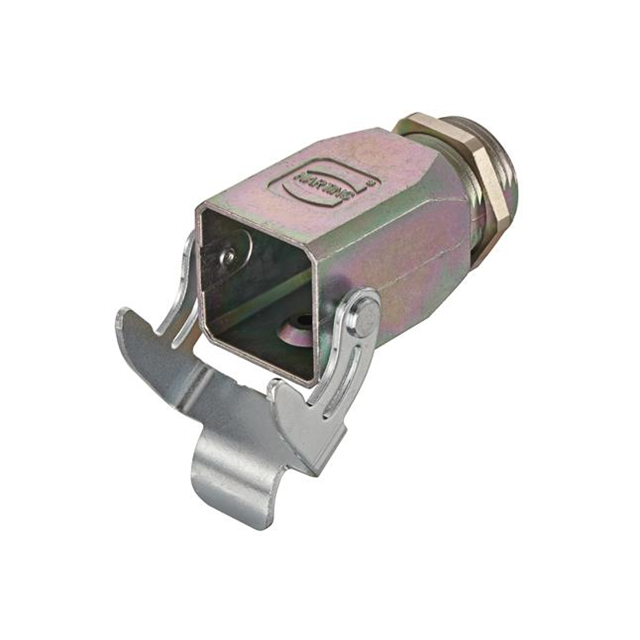

CONN HOOD TOP ENTRY SZ3A PG13.5

Search across all available documentation for this part.

Active

HARTING Technology Group

CONN HOOD TOP ENTRY SZ3A PG13.5

Technical Specifications

Parameters and characteristics for this part

Part	Lock Location	Connector Type	Features	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size	Ingress Protection	Housing Color	Style	Operating Temperature [Max]	Operating Temperature [Min]	Housing Material	Size / Dimension [y]	Size / Dimension [z]	Thread Size
HARTING Technology Group 09620030307	Locking Clip on Base Bottom	Base - Panel Mount	Cover	28 mm	23 mm	1.575 in	40 mm	0.906 in	1.102 in	3 A	IP65 - Dust Tight Water Resistant	Silver	Bottom Entry	125 °C	-40 °C	Zinc Die Cast
HARTING Technology Group 09620030102	Locking Clip (1) on Hood	Hood		24.2 mm		0.953 in		1.89 "	0.953 in	3 A	IP44	Gray	Top Entry	125 °C	-40 °C	Zinc Die Cast	24.2 mm	48 mm	PG13.5

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hood Connector Top Entry PG13.5 3A IP44
