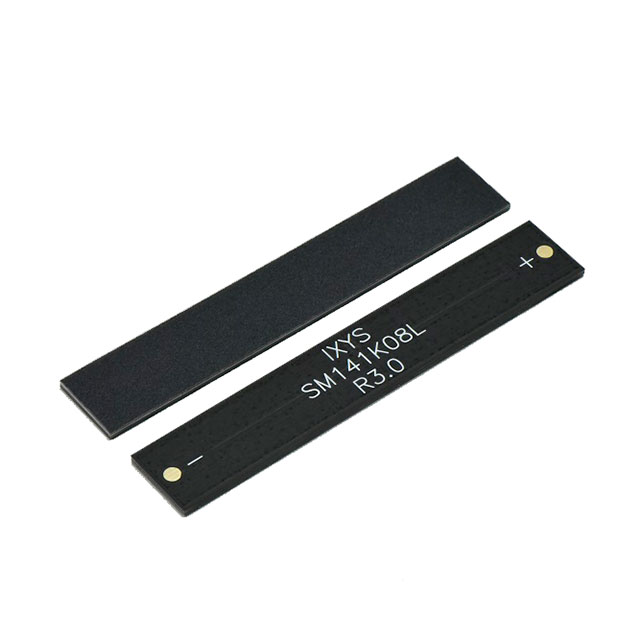

SM141K08L

Active

ANYSOLAR Ltd

MONOCRYST SOLAR CELL 246MW 5.53V

Search across all available documentation for this part.

Active

ANYSOLAR Ltd

MONOCRYST SOLAR CELL 246MW 5.53V

Technical Specifications

Parameters and characteristics for this part

Part	Current - Short Circuit (Isc)	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Package / Case	Current @ Pmpp	Voltage @ Pmpp	Type	Power (Watts) - Max [Max]	Voltage @ Pmpp [custom]	Voltage - Open Circuit
ANYSOLAR Ltd SM141K10LV	58.6 mA	90 °C	-40 °C	1.772 in	1.417 in	45 mm	0.071 in	1.8 mm	36 mm	Cells	55.1 mA	5.58 V	Monocrystalline	307 mW
ANYSOLAR Ltd SM141K08L	58.6 mA	90 °C	-40 °C	3.465 "	0.591 in	88 mm	0.083 in	2.1 mm	15 mm	Cells	55.1 mA		Monocrystalline	246 mW	4.46 V	5.53 V
ANYSOLAR Ltd SM141K06L	58.6 mA	90 °C	-40 °C	1.654 in	0.906 in	42 mm	0.083 in	2.1 mm	23 mm	Cells	55.1 mA	3.35 V	Monocrystalline	184 mW		4.15 V
ANYSOLAR Ltd SM141K04LV	58.6 mA	90 °C	-40 °C	1.772 in	0.591 in	45 mm	0.083 in	2.1 mm	15 mm	Cells	55.1 mA	2.23 V	Monocrystalline	123 mW		2.76 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Monocrystalline Solar Cell 246 mW 5.53 V

Technical documentation and resources

No documents available
