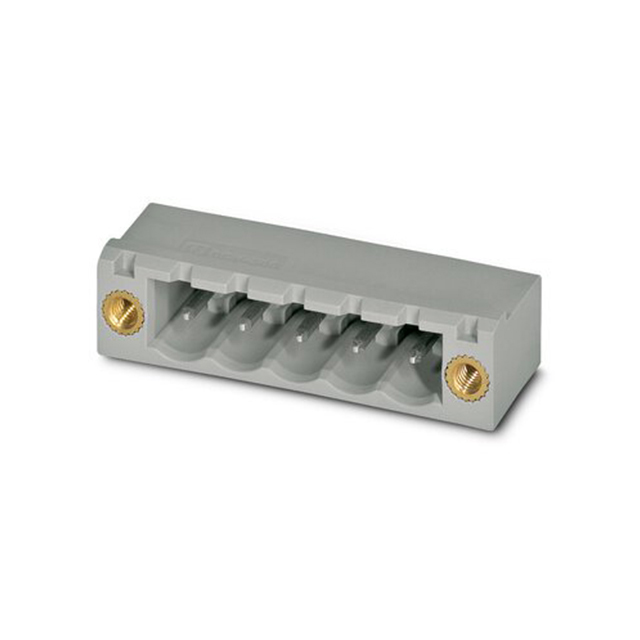

5445287

Active

Phoenix Contact

5 STRAIGHT NEEDLE 1 5MM GREEN PLUGIN PLUGGABLE SYSTEM TERMINAL BLOCK ROHS

Search across all available documentation for this part.

Active

Phoenix Contact

5 STRAIGHT NEEDLE 1 5MM GREEN PLUGIN PLUGGABLE SYSTEM TERMINAL BLOCK ROHS

Technical Specifications

Parameters and characteristics for this part

Specification	5445287

Color	Green
Contact Mating Finish	Tin
Contact Tail Length	3.5 mm
Contact Tail Length	0.138 in
Current - IEC	12 A
Features	Mating Flange
Header Orientation	90°, Right Angle
Housing Material	Polyamide (PA), Nylon
Insulation Height	8.61 mm
Insulation Height	0.339 "
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	1
Pitch [x]	5 mm
Pitch [x]	0.197 in
Positions Per Level	5
Termination Style	Solder
Type	Header, Male Pins, Shrouded (4 Side)
Voltage - IEC	400 V
Voltage - UL	300 V

Pluggable Terminal Blocks BCH-508HF-20 GN 5.08 MM HEADER

Part	Current - IEC	Termination Style	Color	Positions Per Level	Voltage - UL	Number of Positions	Number of Levels	Pitch [x]	Pitch [x]	Mounting Type	Voltage - IEC	Type	Housing Material	Material Flammability Rating	Header Orientation	Contact Mating Finish	Features	Contact Tail Length	Contact Tail Length	Insulation Height	Insulation Height	Current - UL
Phoenix Contact 5445643	12 A	Solder	Green	23	300 V	23	1	5 mm	0.197 in	Through Hole	400 V	Header Male Pins Shrouded (4 Side)	Polyamide (PA) Nylon	UL94 V-0	90° Right Angle	Tin
Phoenix Contact 5445287	12 A	Solder	Green	5	300 V		1	5 mm	0.197 in	Through Hole	400 V	Header Male Pins Shrouded (4 Side)	Polyamide (PA) Nylon	UL94 V-0	90° Right Angle	Tin	Mating Flange	3.5 mm	0.138 in	8.61 mm	0.339 "
Phoenix Contact 5445504	12 A	Solder	Green	9	300 V	9	1	5 mm	0.197 in	Through Hole	400 V	Header Male Pins Shrouded (4 Side)	Polyamide (PA) Nylon	UL94 V-0	90° Right Angle	Tin
Phoenix Contact 5452352	12 A	Solder	Black	3	300 V		1	5 mm	0.197 in	Through Hole	320 V	Header Male Pins Shrouded (4 Side)			90° Right Angle	Tin	Mating Flange	3.5 mm	0.138 in	8.61 mm	0.339 "
Phoenix Contact 5452048	12 A	Solder	Black	4	300 V	4	1	5 mm	0.197 in	Through Hole	320 V	Header Male Pins Shrouded (4 Side)			90° Right Angle	Tin		3.5 mm	0.138 in	8.61 mm	0.339 "
Phoenix Contact 5452350	8 A	Solder	Black	20	300 V	20	1	3.81 mm	0.15 in	Through Hole	160 V	Header Male Pins Shrouded (4 Side)			90° Right Angle	Tin	Mating Flange	3.4 mm	0.134 in	7.4 mm	0.291 in	8 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pluggable Terminal Blocks BCH-508HF-20 GN 5.08 MM HEADER
