5452352

Active

Phoenix Contact

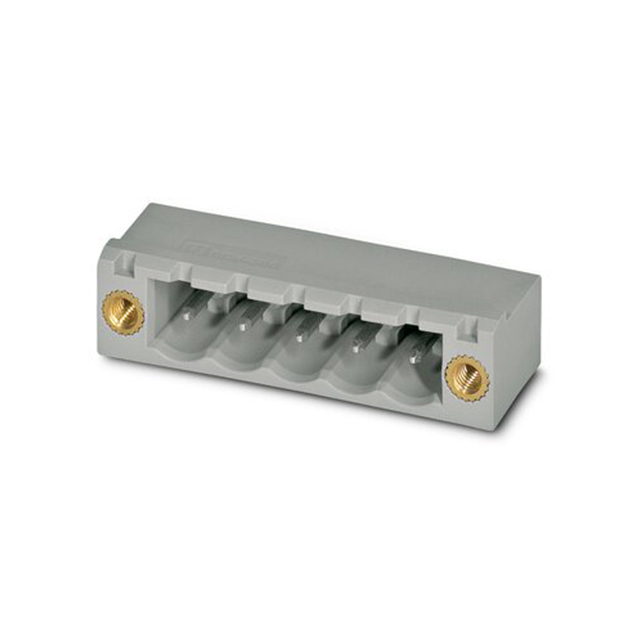

PLUGGABLE TERMINAL BLOCKS BCH-500HF- 3 BK

Search across all available documentation for this part.

Active

Phoenix Contact

PLUGGABLE TERMINAL BLOCKS BCH-500HF- 3 BK

Technical Specifications

Parameters and characteristics for this part

Specification	5452352

Color	Black
Contact Mating Finish	Tin
Contact Tail Length	3.5 mm
Contact Tail Length	0.138 in
Current - IEC	12 A
Features	Mating Flange
Header Orientation	90°, Right Angle
Insulation Height	8.61 mm
Insulation Height	0.339 "
Mounting Type	Through Hole
Number of Levels	1
Pitch [x]	5 mm
Pitch [x]	0.197 in
Positions Per Level	3
Termination Style	Solder
Type	Header, Male Pins, Shrouded (4 Side)
Voltage - IEC	320 V
Voltage - UL	300 V

Pluggable Terminal Blocks BCH-508HF-20 GN 5.08 MM HEADER

Part	Current - IEC	Termination Style	Color	Positions Per Level	Voltage - UL	Number of Positions	Number of Levels	Pitch [x]	Pitch [x]	Mounting Type	Voltage - IEC	Type	Housing Material	Material Flammability Rating	Header Orientation	Contact Mating Finish	Features	Contact Tail Length	Contact Tail Length	Insulation Height	Insulation Height	Current - UL
Phoenix Contact 5445643	12 A	Solder	Green	23	300 V	23	1	5 mm	0.197 in	Through Hole	400 V	Header Male Pins Shrouded (4 Side)	Polyamide (PA) Nylon	UL94 V-0	90° Right Angle	Tin
Phoenix Contact 5445287	12 A	Solder	Green	5	300 V		1	5 mm	0.197 in	Through Hole	400 V	Header Male Pins Shrouded (4 Side)	Polyamide (PA) Nylon	UL94 V-0	90° Right Angle	Tin	Mating Flange	3.5 mm	0.138 in	8.61 mm	0.339 "
Phoenix Contact 5445504	12 A	Solder	Green	9	300 V	9	1	5 mm	0.197 in	Through Hole	400 V	Header Male Pins Shrouded (4 Side)	Polyamide (PA) Nylon	UL94 V-0	90° Right Angle	Tin
Phoenix Contact 5452352	12 A	Solder	Black	3	300 V		1	5 mm	0.197 in	Through Hole	320 V	Header Male Pins Shrouded (4 Side)			90° Right Angle	Tin	Mating Flange	3.5 mm	0.138 in	8.61 mm	0.339 "
Phoenix Contact 5452048	12 A	Solder	Black	4	300 V	4	1	5 mm	0.197 in	Through Hole	320 V	Header Male Pins Shrouded (4 Side)			90° Right Angle	Tin		3.5 mm	0.138 in	8.61 mm	0.339 "
Phoenix Contact 5452350	8 A	Solder	Black	20	300 V	20	1	3.81 mm	0.15 in	Through Hole	160 V	Header Male Pins Shrouded (4 Side)			90° Right Angle	Tin	Mating Flange	3.4 mm	0.134 in	7.4 mm	0.291 in	8 A
