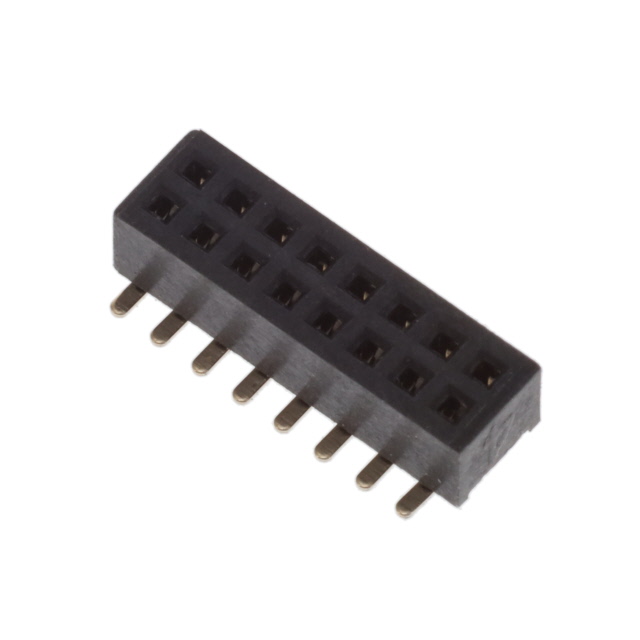

MRS2-16-U-SMT

Active

Adam Tech

RECEPTACLE STRIP, 16P 1.0MM PITC

Search across all available documentation for this part.

Active

Adam Tech

RECEPTACLE STRIP, 16P 1.0MM PITC

Technical Specifications

Parameters and characteristics for this part

Specification	MRS2-16-U-SMT

Applications	General Purpose
Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.039 in
Pitch - Mating	1 mm
Row Spacing - Mating	0.039 "
Row Spacing - Mating	1 mm
Termination	Solder
Voltage Rating	250 VAC

Part	Applications	Contact Finish - Mating	Number of Positions	Connector Type	Pitch - Mating	Pitch - Mating	Insulation Material	Contact Finish Thickness - Mating	Mounting Type	Contact Shape	Material Flammability Rating	Contact Finish - Post	Number of Positions Loaded	Termination	Fastening Type	Contact Type	Row Spacing - Mating	Row Spacing - Mating	Voltage Rating	Contact Material	Number of Rows	Insulation Color	Contact Finish Thickness - Post	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions
Adam Tech MRS2-10-U-SMT	General Purpose	Gold	10	Header	0.039 in	1 mm	Thermoplastic	Flash	Surface Mount	Square	UL94 V-0	Gold	All	Solder	Push-Pull	Female Socket	0.039 "	1 mm	250 VAC	Phosphor Bronze	2	Black	Flash	-40 °C	105 ░C
Adam Tech MRS2-12-U-SMT	General Purpose	Gold	12	Header	0.039 in	1 mm	Thermoplastic	Flash	Surface Mount	Square	UL94 V-0	Gold	All	Solder	Push-Pull	Female Socket	0.039 "	1 mm	250 VAC	Phosphor Bronze	2	Black	Flash	-40 °C	105 ░C
Adam Tech MRS2-14-U-SMT	General Purpose	Gold	14	Header	0.039 in	1 mm	Thermoplastic	Flash	Surface Mount	Square	UL94 V-0	Gold	All	Solder	Push-Pull	Female Socket	0.039 "	1 mm	250 VAC	Phosphor Bronze	2	Black	Flash	-40 °C	105 ░C
Adam Tech MRS2-16-U-SMT	General Purpose	Gold		Header	0.039 in	1 mm	Thermoplastic	Flash	Surface Mount	Square	UL94 V-0	Gold	All	Solder	Push-Pull	Female Socket	0.039 "	1 mm	250 VAC	Phosphor Bronze	2	Black	Flash	-40 °C	105 ░C	16
Adam Tech MRS2-20-U-SMT	General Purpose	Gold	20	Header	0.039 in	1 mm	Thermoplastic	Flash	Surface Mount	Square	UL94 V-0	Gold	All	Solder	Push-Pull	Female Socket	0.039 "	1 mm	250 VAC	Phosphor Bronze	2	Black	Flash	-40 °C	105 ░C
