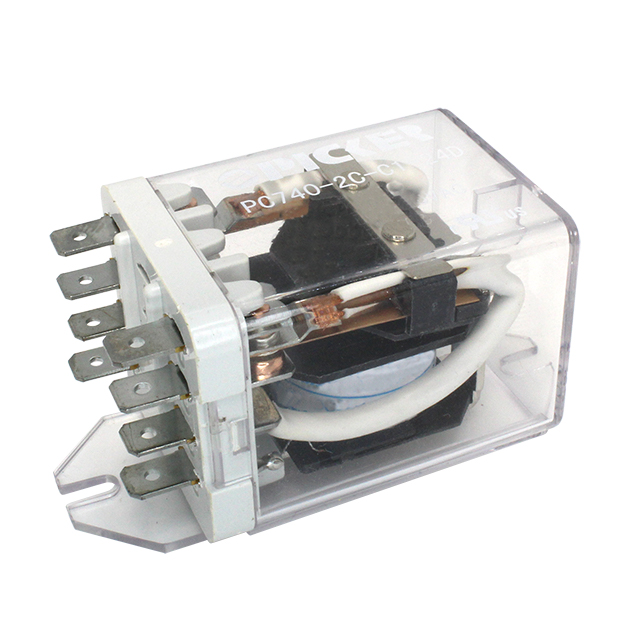

PC740-2C-C1-12D
ActivePicker Components
RELAY GEN PURPOSE DPDT 40A 12V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PC740-2C-C1-12D
ActivePicker Components
RELAY GEN PURPOSE DPDT 40A 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PC740-2C-C1-12D |
|---|---|
| Approval Agency | cUL, cURus, UL |
| Coil Insulation | Class B |
| Coil Resistance | 58 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 12 VDC |
| Contact Form | DPDT (2 Form C) |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Contact Rating (Current) | 40 A |
| Load - Max Switching | 10000 VA, 1120 W |
| Mounting Type | Chassis Mount |
| Must Operate Voltage | 9.6 VDC |
| Must Release Voltage | 1 VDC |
| Operate Time | 25 ms |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -55 °C |
| Relay Type | General Purpose |
| Release Time | 15 ms |
| Switching Voltage | 250 VAC, 28 VDC |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 100 | $ 10.11 | |
Description
General part information
PC740-2C Series
General Purpose Relay DPDT (2 Form C) 12VDC Coil Chassis Mount
