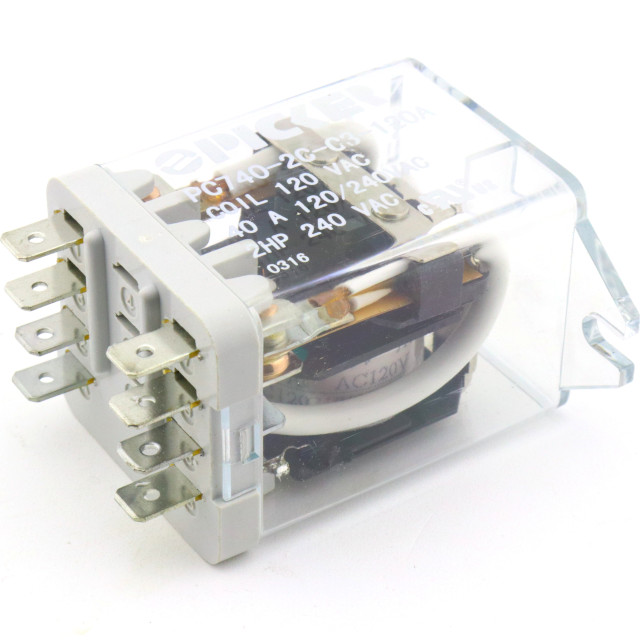

PC740-2C-C3-120A

Active

Picker Components

RELAY GEN PURPOSE DPDT 40A 120V

Search across all available documentation for this part.

Active

Picker Components

RELAY GEN PURPOSE DPDT 40A 120V

Technical Specifications

Parameters and characteristics for this part

Part	Termination Style	Operate Time	Coil Voltage	Relay Type	Coil Resistance	Switching Voltage	Release Time	Contact Form	Contact Material	Approval Agency	Must Operate Voltage	Contact Rating (Current)	Coil Type	Mounting Type	Must Release Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Load - Max Switching	Coil Current	Coil Insulation
Picker Components PC740-2C-C3-120A	Quick Connect - 0.250" (6.3mm)	25 ms	120 VAC	General Purpose	706 Ohms	28 VDC 250 VAC	15 ms	DPDT (2 Form C)	Silver Cadmium Oxide (AgCdO)	cUL cURus UL	88 VAC/DC	40 A	Non Latching	Chassis Mount	33 VAC	70 °C	-55 °C	1120 W 10000 VA	170 mA	Class B
Picker Components PC740-2C-C1-12D	Quick Connect - 0.250" (6.3mm)	25 ms	12 VDC	General Purpose	58 Ohms	28 VDC 250 VAC	15 ms	DPDT (2 Form C)	Silver Cadmium Oxide (AgCdO)	cUL cURus UL	9.6 VDC	40 A	Non Latching	Chassis Mount	1 VDC	70 °C	-55 °C	1120 W 10000 VA		Class B

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	320	$ 13.29

General part information

General Purpose Relay DPDT (2 Form C) 120VAC Coil Chassis Mount
