171-025-113R031
ActiveMH Connectors

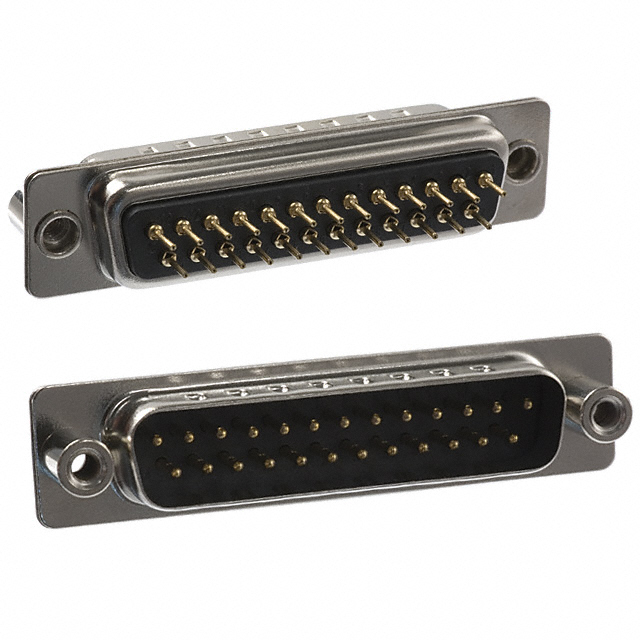

D SUB CONNECTOR, DB25, 25 CONTACTS, PLUG, THROUGH HOLE, DB, 171 SERIES, STEEL BODY
Deep-Dive with AI
Search across all available documentation for this part.
171-025-113R031
ActiveMH Connectors
D SUB CONNECTOR, DB25, 25 CONTACTS, PLUG, THROUGH HOLE, DB, 171 SERIES, STEEL BODY
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 171-025-113R031 |
|---|---|
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Plug, Male Pins |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Form | Stamped |
| Contact Material | Brass |
| Contact Type | Signal |
| Current Rating (Amps) | 5 A |
| Dielectric Material | Polyamide (PA9T), Nylon 9T |
| Features | Grounding Indents |
| Flange Feature | 4-40 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Panel Mount |
| Number of Rows | 2 |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout [custom] | DB, B |
| Shell Size, Connector Layout [custom] | 3 |
| Termination | Solder |
171-025 Series
| Part | Connector Type | Dielectric Material | Number of Rows | Contact Finish | Contact Type | Material Flammability Rating | Connector Style | Wire Gauge [Min] | Wire Gauge [Max] | Contact Finish Thickness | Contact Form | Flange Feature | Current Rating (Amps) | Color | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Features | Shell Material, Finish | Mounting Type | Contact Material | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MH Connectors | Male Pins Plug | Polybutylene Terephthalate (PBT) Glass Filled | 2 | Gold | Signal | UL94 V-0 | D-Sub | 20 AWG | 28 AWG | Flash | Stamped | Cable Side | 5 A | Black | B DB | 3 | Grounding Indents | ||||
MH Connectors | Receptacle Female Sockets | Polybutylene Terephthalate (PBT) | 2 | Gold | Signal | UL94 V-0 | D-Sub | 20 AWG | 28 AWG | Flash | Stamped | Cable Side | 5 A | Black | B DB | 3 | |||||
MH Connectors | Receptacle Female Sockets | Polybutylene Terephthalate (PBT) | 2 | Gold | Signal | UL94 V-0 | D-Sub | 20 AWG | 28 AWG | Flash | Stamped | Cable Side | 5 A | Black | B DB | 3 | |||||
MH Connectors | Receptacle Female Sockets | Polybutylene Terephthalate (PBT) Glass Filled | 2 | Gold | Signal | UL94 V-0 | D-Sub | 20 AWG | 28 AWG | Flash | Stamped | Cable Side | 5 A | Black | B DB | 3 | Nickel Plated Steel | ||||
MH Connectors | Receptacle Female Sockets | Polybutylene Terephthalate (PBT) | 2 | Gold | Signal | UL94 V-0 | D-Sub | 20 AWG | 28 AWG | Flash | Stamped | Housing/Shell (Unthreaded) | 5 A | Black | B DB | 3 | Steel Yellow Chromate Plated Zinc | ||||
MH Connectors | Receptacle Female Sockets | Polyamide (PA9T) Nylon 9T | 2 | Gold | Signal | UL94 V-0 | D-Sub | Flash | Stamped | 4-40 Board Side | 5 A | Black | B DB | 3 | Nickel Plated Steel | Panel Mount Through Hole | Brass | Solder | |||
MH Connectors | Male Pins Plug | Polybutylene Terephthalate (PBT) | 2 | Gold | Signal | UL94 V-0 | D-Sub | Flash | Stamped | 4-40 Board Side | 5 A | Black | B DB | 3 | Grounding Indents | Panel Mount Through Hole | Solder | ||||
MH Connectors | Male Pins Plug | Polybutylene Terephthalate (PBT) Glass Filled | 2 | Gold | Signal | UL94 V-0 | D-Sub | 20 AWG | 28 AWG | Flash | Stamped | Housing/Shell (Unthreaded) | 5 A | Black | B DB | 3 | Grounding Indents | Nickel Plated Steel | Copper Alloy | ||
MH Connectors | Male Pins Plug | Polyamide (PA9T) Nylon 9T | 2 | Gold | Signal | UL94 V-0 | D-Sub | Flash | Stamped | 4-40 | 5 A | Black | B DB | 3 | Grounding Indents | Nickel Plated Steel | Panel Mount Through Hole | Brass | Solder | ||
MH Connectors | Male Pins Plug | Polybutylene Terephthalate (PBT) Glass Filled | 2 | Gold | Signal | UL94 V-0 | D-Sub | 20 AWG | 28 AWG | Flash | Stamped | Cable Side | 5 A | Black | B DB | 3 | Grounding Indents | Nickel Plated Steel | Copper Alloy |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
171-025 Series
25 Position D-Sub Plug, Male Pins Connector
