171-025-213R021

Active

MH Connectors

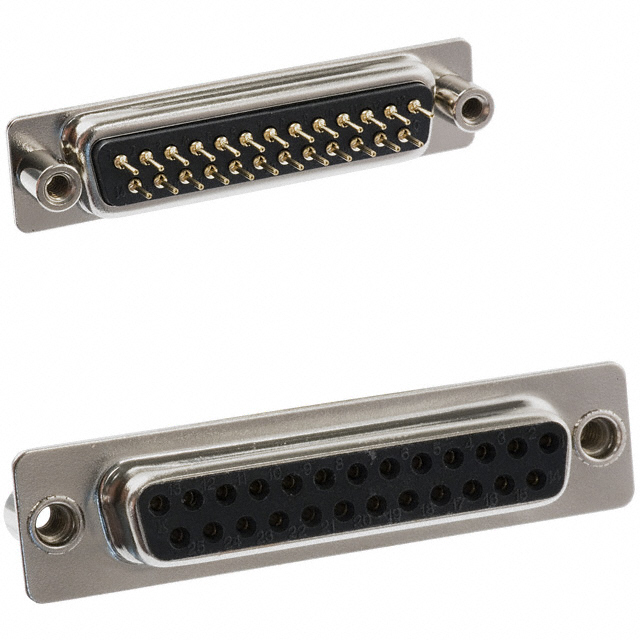

CONN D-SUB RCPT 25P PNL MNT SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Backshell Reference Guide

171-025-213R021

Active

MH Connectors

CONN D-SUB RCPT 25P PNL MNT SLDR

Deep-Dive with AI

DocumentsDatasheet Backshell Reference Guide

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	171-025-213R021

Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Form	Stamped
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polyamide (PA9T), Nylon 9T
Flange Feature	Board Side, 4-40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Panel Mount
Number of Rows	2
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout [custom]	DB, B
Shell Size, Connector Layout [custom]	3
Termination	Solder

171-025 Series

Part	Connector Type	Dielectric Material	Number of Rows	Contact Finish	Contact Type	Material Flammability Rating	Connector Style	Wire Gauge [Min]	Wire Gauge [Max]	Contact Finish Thickness	Contact Form	Flange Feature	Current Rating (Amps)	Color	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Features	Shell Material, Finish	Mounting Type	Contact Material	Termination
MH Connectors 171-025-102L011	Male Pins Plug	Polybutylene Terephthalate (PBT) Glass Filled	2	Gold	Signal	UL94 V-0	D-Sub	20 AWG	28 AWG	Flash	Stamped	Cable Side	5 A	Black	B DB	3	Grounding Indents
MH Connectors 171-025-202-021	Receptacle Female Sockets	Polybutylene Terephthalate (PBT)	2	Gold	Signal	UL94 V-0	D-Sub	20 AWG	28 AWG	Flash	Stamped	Cable Side	5 A	Black	B DB	3
MH Connectors 171-025-202L011	Receptacle Female Sockets	Polybutylene Terephthalate (PBT)	2	Gold	Signal	UL94 V-0	D-Sub	20 AWG	28 AWG	Flash	Stamped	Cable Side	5 A	Black	B DB	3
MH Connectors 171-025-203L011	Receptacle Female Sockets	Polybutylene Terephthalate (PBT) Glass Filled	2	Gold	Signal	UL94 V-0	D-Sub	20 AWG	28 AWG	Flash	Stamped	Cable Side	5 A	Black	B DB	3		Nickel Plated Steel
MH Connectors 171-025-201L001	Receptacle Female Sockets	Polybutylene Terephthalate (PBT)	2	Gold	Signal	UL94 V-0	D-Sub	20 AWG	28 AWG	Flash	Stamped	Housing/Shell (Unthreaded)	5 A	Black	B DB	3		Steel Yellow Chromate Plated Zinc
MH Connectors 171-025-213R021	Receptacle Female Sockets	Polyamide (PA9T) Nylon 9T	2	Gold	Signal	UL94 V-0	D-Sub			Flash	Stamped	4-40 Board Side	5 A	Black	B DB	3		Nickel Plated Steel	Panel Mount Through Hole	Brass	Solder
MH Connectors 171-025-112-011	Male Pins Plug	Polybutylene Terephthalate (PBT)	2	Gold	Signal	UL94 V-0	D-Sub			Flash	Stamped	4-40 Board Side	5 A	Black	B DB	3	Grounding Indents		Panel Mount Through Hole		Solder
MH Connectors 171-025-103L001	Male Pins Plug	Polybutylene Terephthalate (PBT) Glass Filled	2	Gold	Signal	UL94 V-0	D-Sub	20 AWG	28 AWG	Flash	Stamped	Housing/Shell (Unthreaded)	5 A	Black	B DB	3	Grounding Indents	Nickel Plated Steel		Copper Alloy
MH Connectors 171-025-113R031	Male Pins Plug	Polyamide (PA9T) Nylon 9T	2	Gold	Signal	UL94 V-0	D-Sub			Flash	Stamped	4-40	5 A	Black	B DB	3	Grounding Indents	Nickel Plated Steel	Panel Mount Through Hole	Brass	Solder
MH Connectors 171-025-103L011	Male Pins Plug	Polybutylene Terephthalate (PBT) Glass Filled	2	Gold	Signal	UL94 V-0	D-Sub	20 AWG	28 AWG	Flash	Stamped	Cable Side	5 A	Black	B DB	3	Grounding Indents	Nickel Plated Steel		Copper Alloy

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 4.90
		10	$ 3.75
		25	$ 3.38
		40	$ 3.21
		80	$ 2.97
		230	$ 2.66
		440	$ 2.48
		945	$ 2.30
		2400	$ 2.10

Description

General part information

171-025 Series

25 Position D-Sub Receptacle, Female Sockets Connector

Documents

Technical documentation and resources

Datasheet

Backshell Reference Guide

Datasheet
