8PCR-02-006
ActiveTE Connectivity Raychem Cable Protection
8PCR-02-006=#8 TRIBARRIER
Deep-Dive with AI
Search across all available documentation for this part.
8PCR-02-006
ActiveTE Connectivity Raychem Cable Protection

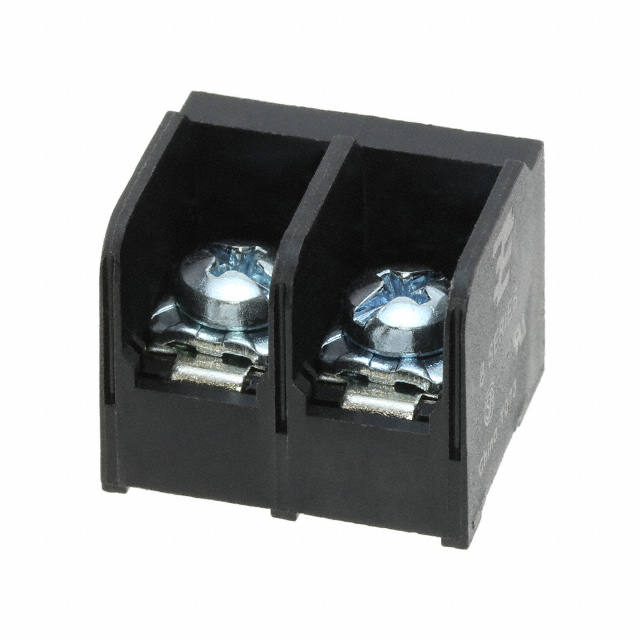

8PCR-02-006=#8 TRIBARRIER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 8PCR-02-006 |
|---|---|
| Barrier Type | 3 Wall (Tri) |
| Bottom Termination | PC Pin |
| Color | Black |
| Current Rating (Amps) | 30 A |
| Material - Insulation | Thermoplastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Circuits | 2 |
| Number of Rows | 1 |
| Number of Wire Entries | 2 |
| Operating Temperature [Max] | 120 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 11.12 mm |
| Pitch [x] | 0.438 in |
| Terminal Block Type | Barrier Block |
| Terminal Screw Finish | Zinc |
| Terminal Screw Material | Steel |
| Top Termination | Screws |
| Voltage Rating | 600 V |
| Wire Gauge [Max] | 18 AWG |
| Wire Gauge [Min] | 10 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.58 | |
| 10 | $ 2.14 | |||
| 25 | $ 1.98 | |||
| 50 | $ 1.87 | |||
| 100 | $ 1.77 | |||
| 250 | $ 1.64 | |||
| 500 | $ 1.55 | |||
| 1000 | $ 1.47 | |||
| 5000 | $ 1.29 | |||
Description
General part information
BUCHANAN 8 Series Series
2 Position Barrier Strip, Tri-Barrier, Printed Circuit Pin Bottom Termination, Wire-to-Board, 11.1 mm [.438 in] Centerline, 1 Row, BUCHANAN 8 Series
