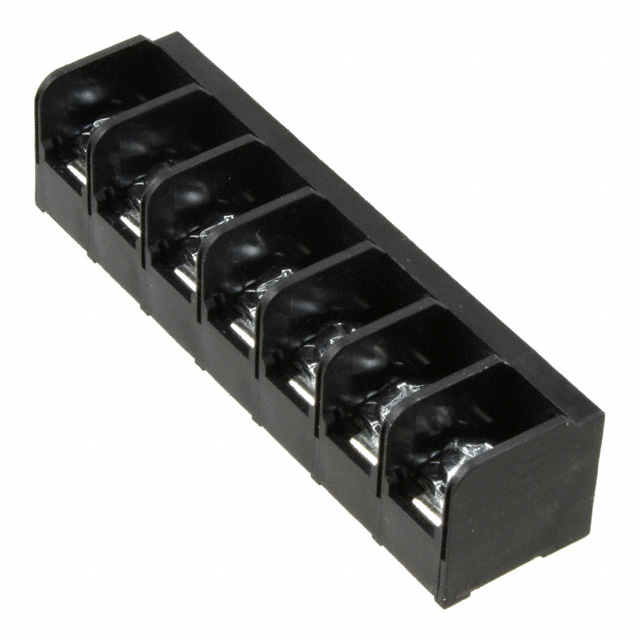

8PCV-07-006

Active

TE Connectivity Raychem Cable Protection

CONN BARRIER STRIP 7CIRC 0.438"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

8PCV-07-006

Active

TE Connectivity Raychem Cable Protection

CONN BARRIER STRIP 7CIRC 0.438"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	8PCV-07-006

Barrier Type	3 Wall (Tri)
Bottom Termination	PC Pin
Color	Black
Current Rating (Amps)	30 A
Material - Insulation	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Circuits	7
Number of Rows	1
Number of Wire Entries	7
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	11.12 mm
Pitch [x]	0.438 in
Terminal Block Type	Barrier Block
Terminal Screw Finish	Zinc
Terminal Screw Material	Steel
Top Termination	Screws with Captive Plate
Voltage Rating	600 V
Wire Gauge [Max]	18 AWG
Wire Gauge [Min]	10 AWG

BUCHANAN 8 Series Series

Part	Number of Rows	Bottom Termination	Material Flammability Rating	Terminal Screw Finish	Pitch [x]	Pitch [x]	Voltage Rating	Color	Top Termination	Terminal Block Type	Current Rating (Amps)	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Barrier Type	Material - Insulation	Wire Gauge [Min]	Wire Gauge [Max]	Terminal Screw Material	Number of Circuits	Number of Wire Entries	Number of Circuits [custom]	Bottom Termination	Features
TE Connectivity Raychem Cable Protection 8PCR-02-006	1	PC Pin	UL94 V-0	Zinc	11.12 mm	0.438 in	600 V	Black	Screws	Barrier Block	30 A	Through Hole	-40 °C	120 °C	3 Wall (Tri)	Thermoplastic	10 AWG	18 AWG	Steel	2	2
TE Connectivity Raychem Cable Protection 8PCV-12-007	1	PC Pin	UL94 V-0	Zinc	11.12 mm	0.438 in	600 V	Black	Screws	Barrier Block	30 A	Through Hole	-40 °C	120 °C	3 Wall (Tri)	Thermoplastic	10 AWG	18 AWG	Steel	12	12
TE Connectivity Raychem Cable Protection 8PCR-08-007	1	PC Pin	UL94 V-0	Zinc	11.12 mm	0.438 in	600 V	Black	Screws	Barrier Block	30 A	Through Hole	-40 °C	120 °C	3 Wall (Tri)	Thermoplastic	10 AWG	18 AWG	Steel		8	8
TE Connectivity Raychem Cable Protection 8QCV-02-008	1	Quick Connect	UL94 V-0	Zinc	11.12 mm	0.438 in	600 V	Black	Screws	Barrier Block	30 A	Chassis Panel	-40 °C	120 °C	3 Wall (Tri)	Thermoplastic	10 AWG	18 AWG	Steel	2	2		0.187 in
TE Connectivity Raychem Cable Protection 8PCR-12-007	1	PC Pin	UL94 V-0	Zinc	11.12 mm	0.438 in	600 V	Black	Screws	Barrier Block	30 A	Through Hole	-40 °C	120 °C	3 Wall (Tri)	Thermoplastic	10 AWG	18 AWG	Steel	12	12
TE Connectivity Raychem Cable Protection 8PCV-03-007	1	PC Pin	UL94 V-0	Zinc	11.12 mm	0.438 in	600 V	Black	Screws	Barrier Block	30 A	Through Hole	-40 °C	120 °C	3 Wall (Tri)	Thermoplastic	10 AWG	18 AWG	Steel	3	3
TE Connectivity Raychem Cable Protection 8PCV-03-008	1	PC Pin	UL94 V-0	Zinc	11.12 mm	0.438 in	600 V	Black	Screws with Captive Plate	Barrier Block	30 A	Chassis Panel Through Hole	-40 °C	120 °C	3 Wall (Tri)	Thermoplastic	10 AWG	18 AWG	Steel	3	3			Flange
TE Connectivity Raychem Cable Protection 8PCV-07-006	1	PC Pin	UL94 V-0	Zinc	11.12 mm	0.438 in	600 V	Black	Screws with Captive Plate	Barrier Block	30 A	Through Hole	-40 °C	120 °C	3 Wall (Tri)	Thermoplastic	10 AWG	18 AWG	Steel	7	7
TE Connectivity Raychem Cable Protection 8PCV-04-006	1	PC Pin	UL94 V-0	Zinc	11.12 mm	0.438 in	600 V	Black	Screws with Captive Plate	Barrier Block	30 A	Through Hole	-40 °C	120 °C	3 Wall (Tri)	Thermoplastic	10 AWG	18 AWG	Steel	4	4
TE Connectivity Raychem Cable Protection 8QCV-08-006	1	Quick Connect	UL94 V-0	Zinc	11.12 mm	0.438 in	600 V	Black	Screws with Captive Plate	Barrier Block	30 A	Chassis Panel	-40 °C	120 °C	3 Wall (Tri)	Thermoplastic	10 AWG	18 AWG	Steel		8	8	0.187 in	Flange

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.59
		10	$ 7.12
		25	$ 6.61
		50	$ 6.25
		100	$ 5.90
		250	$ 5.48
		500	$ 5.18
		1000	$ 4.90

Description

General part information

BUCHANAN 8 Series Series

7 Circuit 0.438" (11.12mm) Barrier Block Connector Screws with Captive Plate
