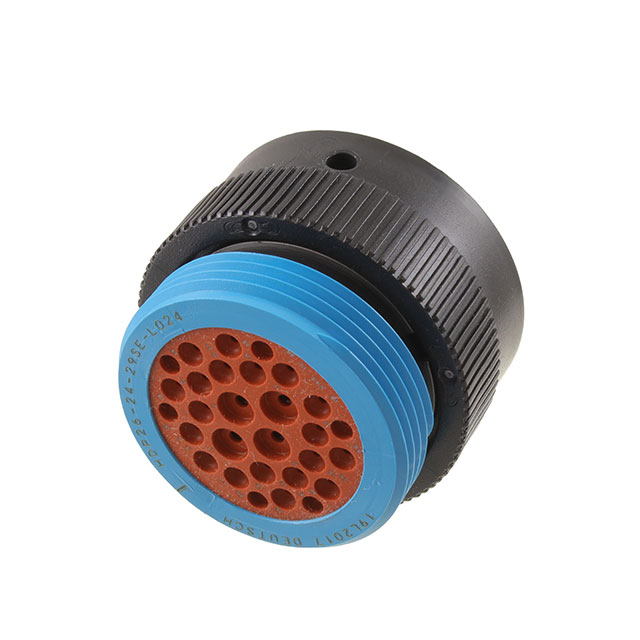

YHDP26-24-29SEL024

Active

TE Connectivity Raychem Cable Protection

PLUG, SIZE 24, HDP, -L024

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

PLUG, SIZE 24, HDP, -L024

Technical Specifications

Parameters and characteristics for this part

Specification	YHDP26-24-29SEL024

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	20, 16, 12
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Threading Adapter, Coupling Nut
Housing Color	Black
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyetherimide (PEI)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	29
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Shell Size - Insert [Max] [diameter]	29
Shell Size - Insert [Min] [diameter]	24
Shielding	Unshielded
Type	For Female Sockets

Part	Note	Connector Type	Contact Size	Contact Size	Insert Material	Contact Shape	Type	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Shell Material	Shell Size - Insert	Number of Positions	Features	Housing Color	Primary Material	Material Flammability Rating	Contact Type	Fastening Type	Mounting Type	Shielding	Ingress Protection	Shell Size - Insert [Min] [diameter]	Shell Size - Insert [Max] [diameter]
TE Connectivity Raychem Cable Protection YHDP26-24-19SEL024	Contacts Not Included	Plug Housing	12 16	6 13	Polyetherimide (PEI)	Circular	For Female Sockets	-55 °C	125 °C	Keyed	Polyamide (PA66) Nylon 6/6 Glass Filled	24-19	19	Coupling Nut Threading Adapter	Black	Plastic	UL94 V-0	Crimp	Bayonet Lock	Free Hanging (In-Line)	Unshielded	IP68 - Dust Tight Waterproof
TE Connectivity Raychem Cable Protection YHDP26-18-14SECL20	Contacts Not Included	Plug Housing	16		Polyetherimide (PEI)	Circular	For Female Sockets	-55 °C	125 °C	Keyed	Polyamide (PA66) Nylon 6/6 Glass Filled	18-14	14	Coupling Nut	Black	Plastic	UL94 V-0	Crimp	Bayonet Lock	Free Hanging (In-Line)	Unshielded	IP68 - Dust Tight Waterproof
TE Connectivity Raychem Cable Protection YHDP26-24-29SEL024	Contacts Not Included	Plug Housing	12 16 20		Polyetherimide (PEI)	Circular	For Female Sockets	-55 °C	125 °C	Keyed	Polyamide (PA66) Nylon 6/6 Glass Filled		29	Coupling Nut Threading Adapter	Black	Plastic	UL94 V-0	Crimp	Bayonet Lock	Free Hanging (In-Line)	Unshielded	IP68 - Dust Tight Waterproof	24	29

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

29 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut, Threading Adapter
