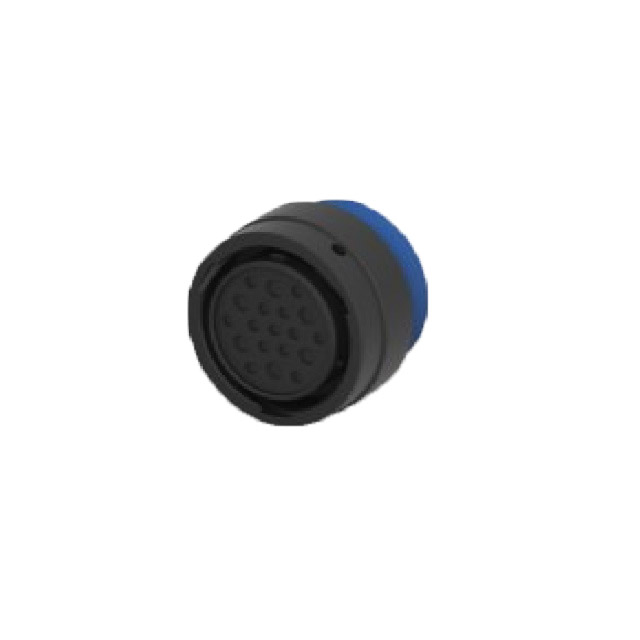

YHDP26-24-19SEL024
ActiveTE Connectivity Raychem Cable Protection
PLUG, SIZE 24, HDP, -L024
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
YHDP26-24-19SEL024
ActiveTE Connectivity Raychem Cable Protection
PLUG, SIZE 24, HDP, -L024
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | YHDP26-24-19SEL024 |
|---|---|
| Connector Type | Plug Housing |
| Contact Shape | Circular |
| Contact Size | 12, 16 |
| Contact Size | 6, 13 |
| Contact Type | Crimp |
| Fastening Type | Bayonet Lock |
| Features | Threading Adapter, Coupling Nut |
| Housing Color | Black |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Insert Material | Polyetherimide (PEI) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 19 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Shell Size - Insert | 24-19 |
| Shielding | Unshielded |
| Type | For Female Sockets |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 19.64 | |
| 10 | $ 16.69 | |||
| 40 | $ 15.14 | |||
| 80 | $ 14.42 | |||
| 120 | $ 14.01 | |||
| 280 | $ 13.20 | |||
| 520 | $ 12.63 | |||
Description
General part information
YHDP26 Series
19 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut, Threading Adapter
