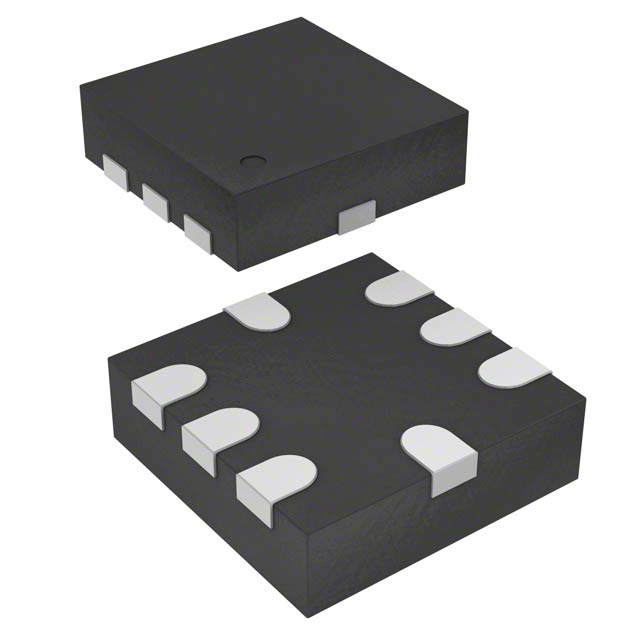

SC560AULTRT

NRND

Semtech Corporation

IC REG LINEAR POS ADJ 8MLPQ-UT

Search across all available documentation for this part.

NRND

Semtech Corporation

IC REG LINEAR POS ADJ 8MLPQ-UT

Technical Specifications

Parameters and characteristics for this part

Specification	SC560AULTRT

Control Features	Enable
Current - Quiescent (Iq)	100 µA
Mounting Type	Surface Mount
Number of Regulators	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Positive
Output Type	Adjustable
Package / Case	8-UFQFN
Protection Features	Under Voltage Lockout (UVLO), Short Circuit, Over Temperature
PSRR [Max]	65 dB
PSRR [Min]	40 dB
Supplier Device Package	8-MLPQ-UT (1.5x1.5)
Voltage - Input (Max) [Max]	5.5 V
Voltage - Output (Max)	5 V
Voltage - Output (Min/Fixed)	1.2 V
Voltage Dropout (Max)	0.1 V

Part	Package / Case	Output Type	Voltage - Output (Min/Fixed)	Output Configuration	Protection Features	Current - Quiescent (Iq)	Control Features	Voltage - Output (Max)	Mounting Type	PSRR [Min]	PSRR [Max]	Number of Regulators	Voltage - Input (Max) [Max]	Voltage Dropout (Max)	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Voltage Dropout (Max)	Voltage - Output (Min/Fixed) [Max]	Voltage - Output (Min/Fixed) [Min]
Semtech Corporation SC560AULTRT	8-UFQFN	Adjustable	1.2 V	Positive	Over Temperature Short Circuit Under Voltage Lockout (UVLO)	100 µA	Enable	5 V	Surface Mount	40 dB	65 dB	2	5.5 V	0.1 V	8-MLPQ-UT (1.5x1.5)	85 °C	-40 °C
Semtech Corporation SC560LULTRT	8-UFQFN		1.8 V 3.3 V	Positive	Over Temperature Short Circuit Under Voltage Lockout (UVLO)	100 µA	Enable Power Good		Surface Mount	40 dB	65 dB	2	5.5 V	0.1 V	8-MLPQ-UT (1.5x1.5)	85 °C	-40 °C	1.81 mOhm	-
Semtech Corporation SC560HULTRT	8-UFQFN			Positive	Over Temperature Short Circuit Under Voltage Lockout (UVLO)	100 µA	Enable Power Good		Surface Mount	40 dB	65 dB	2	5.5 V	0.1 V	8-MLPQ-UT (1.5x1.5)	85 °C	-40 °C	1.81 mOhm		3.3 V	3.3 V
Semtech Corporation SC560BULTRT	8-UFQFN	Adjustable	1.2 V	Positive	Over Temperature Short Circuit Under Voltage Lockout (UVLO)	100 µA	Enable	5 V	Surface Mount	40 dB	65 dB	2	5.5 V	0.1 V	8-MLPQ-UT (1.5x1.5)	85 °C	-40 °C
Semtech Corporation SC560CULTRT	8-UFQFN	Adjustable	1.2 V	Positive	Over Temperature Short Circuit Under Voltage Lockout (UVLO)	100 µA	Enable Power Good	5 V	Surface Mount	40 dB	65 dB	2	5.5 V	0.1 V	8-MLPQ-UT (1.5x1.5)	85 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Linear Voltage Regulator IC Positive Adjustable 2 Output 300mA, 300mA 8-MLPQ-UT (1.5x1.5)
