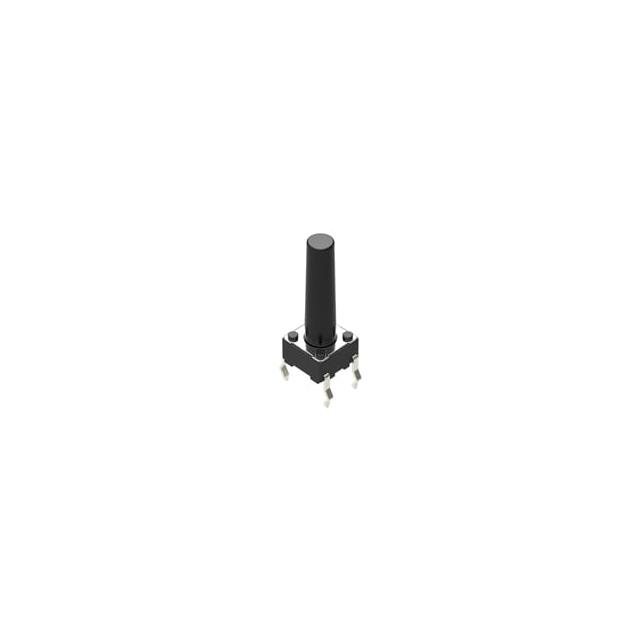

SKHHDHA010

Active

Alps Alpine

SWITCH TACTILE SPST-NO 0.05A 12V

Search across all available documentation for this part.

Active

Alps Alpine

SWITCH TACTILE SPST-NO 0.05A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	SKHHDHA010

Actuator Height off PCB, Vertical [z]	17 mm
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 12 VDC
Illumination	Non-Illuminated
Mechanical Life	500000 Cycles
Mounting Type	Through Hole
Operating Force	100 gf
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-40 °C
Outline [x]	6 mm
Outline [y]	6 mm
Switch Function	Off-Mom
Switch Travel	0.25 mm
Termination Style	PC Pin

Part	Mechanical Life	Illumination	Termination Style	Actuator Orientation	Switch Travel	Circuit	Operating Force	Actuator Type	Actuator Height off PCB, Vertical [z]	Outline [y]	Outline [x]	Operating Temperature [Max]	Operating Temperature [Min]	Contact Rating @ Voltage	Mounting Type	Switch Function
Alps Alpine SKHHDTA010	1000000 Cycles	Non-Illuminated	PC Pin	Top Actuated	0.25 mm	SPST-NO	100 gf	Standard	13 mm	6 mm	6 mm	90 °C	-40 °C	0.05 A 12 VDC	Through Hole	Off-Mom
Alps Alpine SKHHDGA010	200000 Cycles	Non-Illuminated	PC Pin	Top Actuated	0.25 mm	SPST-NO	260 gf	Plunger for Cap	7.3 mm	6 mm	6 mm	90 °C	-40 °C	0.05 A 12 VDC	Through Hole	Off-Mom
Alps Alpine SKHHDAA010	500000 Cycles	Non-Illuminated	PC Pin	Top Actuated	0.25 mm	SPST-NO		Plunger for Cap	7.3 mm	6 mm	6 mm	90 °C	-40 °C	0.05 A 12 VDC	Through Hole	Off-Mom
Alps Alpine SKHHDHA010	500000 Cycles	Non-Illuminated	PC Pin	Top Actuated	0.25 mm	SPST-NO	100 gf	Standard	17 mm	6 mm	6 mm	90 °C	-40 °C	0.05 A 12 VDC	Through Hole	Off-Mom
Alps Alpine SKHHDUA010	500000 Cycles	Non-Illuminated	PC Pin	Top Actuated	0.25 mm	SPST-NO		Standard	13 mm	6 mm	6 mm	90 °C	-40 °C	0.05 A 12 VDC	Through Hole	Off-Mom

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Through Hole
