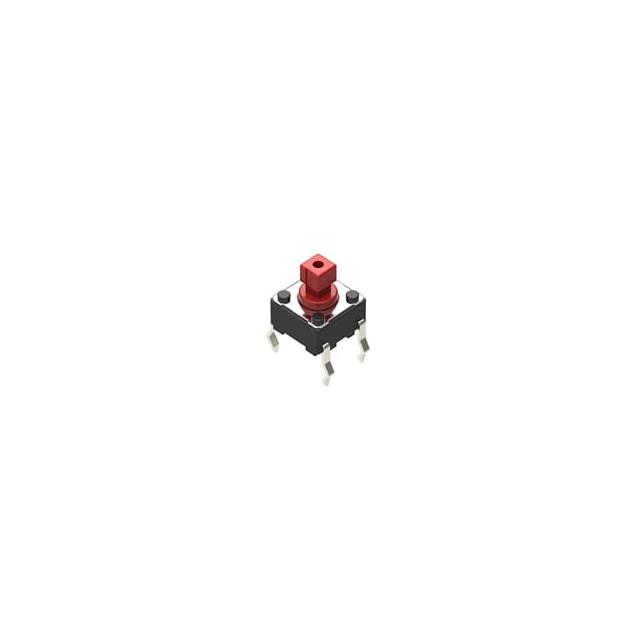

SKHHDGA010
ActiveAlps Alpine
SWITCH TACTILE SPST-NO 0.05A 12V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SKHHDGA010
ActiveAlps Alpine
SWITCH TACTILE SPST-NO 0.05A 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SKHHDGA010 |
|---|---|
| Actuator Height off PCB, Vertical [z] | 7.3 mm |
| Actuator Orientation | Top Actuated |
| Actuator Type | Plunger for Cap |
| Circuit | SPST-NO |
| Contact Rating @ Voltage | 0.05 A, 12 VDC |
| Illumination | Non-Illuminated |
| Mechanical Life | 200000 Cycles |
| Mounting Type | Through Hole |
| Operating Force | 260 gf |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -40 °C |
| Outline [x] | 6 mm |
| Outline [y] | 6 mm |
| Switch Function | Off-Mom |
| Switch Travel | 0.25 mm |
| Termination Style | PC Pin |
SKHHD Series
| Part | Mechanical Life | Illumination | Termination Style | Actuator Orientation | Switch Travel | Circuit | Operating Force | Actuator Type | Actuator Height off PCB, Vertical [z] | Outline [y] | Outline [x] | Operating Temperature [Max] | Operating Temperature [Min] | Contact Rating @ Voltage | Mounting Type | Switch Function |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Alps Alpine | 1000000 Cycles | Non-Illuminated | PC Pin | Top Actuated | 0.25 mm | SPST-NO | 100 gf | Standard | 13 mm | 6 mm | 6 mm | 90 °C | -40 °C | 0.05 A 12 VDC | Through Hole | Off-Mom |
Alps Alpine | 200000 Cycles | Non-Illuminated | PC Pin | Top Actuated | 0.25 mm | SPST-NO | 260 gf | Plunger for Cap | 7.3 mm | 6 mm | 6 mm | 90 °C | -40 °C | 0.05 A 12 VDC | Through Hole | Off-Mom |
Alps Alpine | 500000 Cycles | Non-Illuminated | PC Pin | Top Actuated | 0.25 mm | SPST-NO | Plunger for Cap | 7.3 mm | 6 mm | 6 mm | 90 °C | -40 °C | 0.05 A 12 VDC | Through Hole | Off-Mom | |
Alps Alpine | 500000 Cycles | Non-Illuminated | PC Pin | Top Actuated | 0.25 mm | SPST-NO | 100 gf | Standard | 17 mm | 6 mm | 6 mm | 90 °C | -40 °C | 0.05 A 12 VDC | Through Hole | Off-Mom |
Alps Alpine | 500000 Cycles | Non-Illuminated | PC Pin | Top Actuated | 0.25 mm | SPST-NO | Standard | 13 mm | 6 mm | 6 mm | 90 °C | -40 °C | 0.05 A 12 VDC | Through Hole | Off-Mom |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.48 | |
| 10 | $ 0.46 | |||
| 25 | $ 0.45 | |||
| 100 | $ 0.39 | |||
| 250 | $ 0.35 | |||
| 500 | $ 0.33 | |||
| 1000 | $ 0.29 | |||
| 3000 | $ 0.28 | |||
| 5000 | $ 0.26 | |||
Description
General part information
SKHHD Series
Tactile Switch SPST-NO Top Actuated Through Hole
