CONN SOCKET PLCC 84POS GOLD

Search across all available documentation for this part.

Active

Assmann WSW Components

CONN SOCKET PLCC 84POS GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	A-CCS 084-G-T

Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Material - Mating	Phosphor Bronze
Contact Material - Post	Phosphor Bronze
Contact Resistance	15 mOhm
Current Rating (Amps)	1 A
Features	Closed Frame
Housing Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Solder
Termination Post Length [x]	3.35 mm
Termination Post Length [x]	0.132 in
Type	PLCC

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material - Mating	Contact Finish - Post	Type	Material Flammability Rating	Contact Resistance	Termination	Mounting Type	Features	Termination Post Length [x]	Termination Post Length [x]	Contact Material - Post	Pitch - Mating	Pitch - Mating	Housing Material	Contact Finish - Mating	Current Rating (Amps)	Pitch - Post	Pitch - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post
Assmann WSW Components A-CCS 084-G-T	-40 °C	105 ░C	Phosphor Bronze	Gold	PLCC	UL94 V-0	15 mOhm	Solder	Through Hole	Closed Frame	3.35 mm	0.132 in	Phosphor Bronze	0.05 in	1.27 mm	Polybutylene Terephthalate (PBT)	Gold	1 A	2.54 mm	0.1 in
Assmann WSW Components A-CCS 084-Z-T	-40 °C	105 ░C	Phosphor Bronze	Tin	PLCC	UL94 V-0	15 mOhm	Solder	Through Hole	Closed Frame	3.35 mm	0.132 in	Phosphor Bronze	0.05 in	1.27 mm	Polybutylene Terephthalate (PBT)		1 A	2.54 mm	0.1 in	160 µin	4.06 µm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

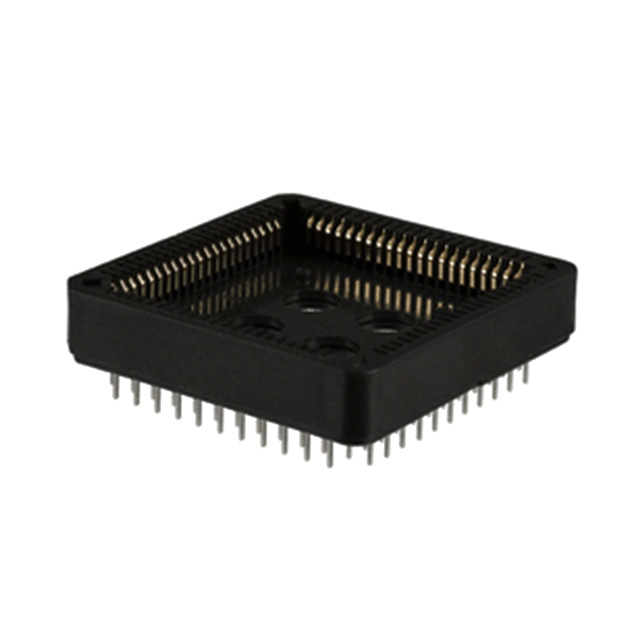

84 (4 x 21) Pos PLCC Socket Gold Through Hole
