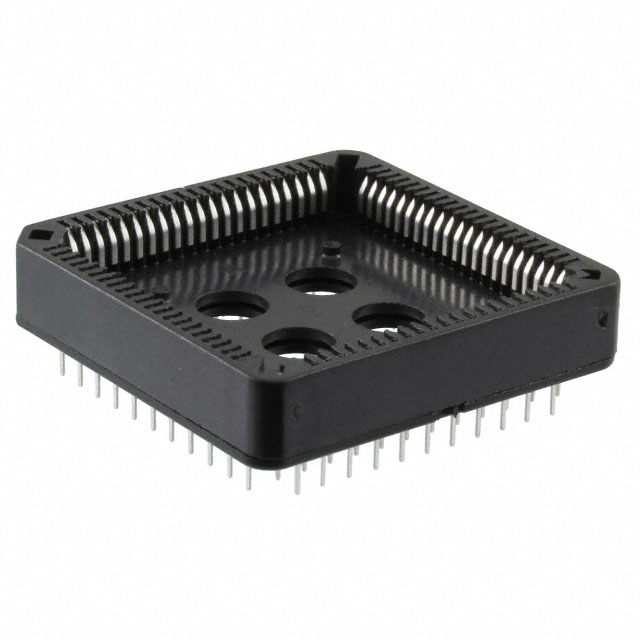

A-CCS 084-Z-T
ActiveAssmann WSW Components
IC PLCC SOCKET 84POS TIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A-CCS 084-Z-T
ActiveAssmann WSW Components
IC PLCC SOCKET 84POS TIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | A-CCS 084-Z-T |
|---|---|
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Post | 160 µin |
| Contact Finish Thickness - Post | 4.06 µm |
| Contact Material - Mating | Phosphor Bronze |
| Contact Material - Post | Phosphor Bronze |
| Contact Resistance | 15 mOhm |
| Current Rating (Amps) | 1 A |
| Features | Closed Frame |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.05 in |
| Pitch - Mating | 1.27 mm |
| Pitch - Post | 2.54 mm |
| Pitch - Post | 0.1 in |
| Termination | Solder |
| Termination Post Length [x] | 3.35 mm |
| Termination Post Length [x] | 0.132 in |
| Type | PLCC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 2.76 | |
| 10 | $ 2.10 | |||
| 25 | $ 1.90 | |||
| 50 | $ 1.75 | |||
| 100 | $ 1.62 | |||
| 250 | $ 1.47 | |||
| 500 | $ 1.37 | |||
| 1000 | $ 1.27 | |||
| 2500 | $ 1.16 | |||
Description
General part information
A-CCS 08 Series
84 (4 x 21) Pos PLCC Socket Tin Through Hole
