6A10GHB0G

Active

Taiwan Semiconductor Corporation

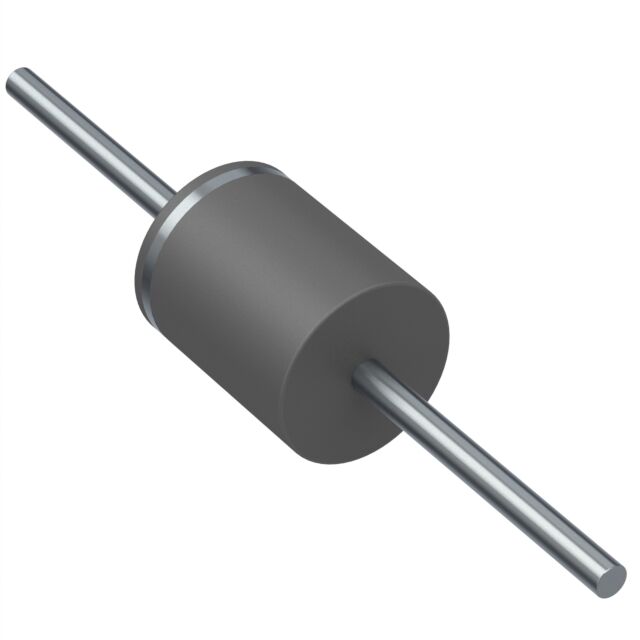

DIODE STANDARD 100V 6A R6

Search across all available documentation for this part.

Active

Taiwan Semiconductor Corporation

DIODE STANDARD 100V 6A R6

Technical Specifications

Parameters and characteristics for this part

Specification	6A10GHB0G

Capacitance @ Vr, F	60 pF
Current - Average Rectified (Io)	6 A
Current - Reverse Leakage @ Vr	10 µA
Grade	Automotive
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	R-6, Axial
Qualification	AEC-Q101
Speed	Standard Recovery >500ns
Speed	200 mA
Supplier Device Package	R-6
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	100 V
Voltage - Forward (Vf) (Max) @ If	1.1 V

Part	Mounting Type	Voltage - Forward (Vf) (Max) @ If	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Reverse Leakage @ Vr	Capacitance @ Vr, F	Current - Average Rectified (Io)	Technology	Package / Case	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Speed	Speed	Supplier Device Package	Qualification	Grade
Taiwan Semiconductor Corporation 6A10G B0G	Through Hole	1.1 V	100 V	10 µA	60 pF	6 A	Standard	R-6 Axial	150 °C	-55 °C	Standard Recovery >500ns	200 mA	R-6
Taiwan Semiconductor Corporation 6A10GHB0G	Through Hole	1.1 V	100 V	10 µA	60 pF	6 A	Standard	R-6 Axial	150 °C	-55 °C	Standard Recovery >500ns	200 mA	R-6	AEC-Q101	Automotive
Taiwan Semiconductor Corporation 6A10G A0G	Through Hole	1.1 V	100 V	10 µA	60 pF	6 A	Standard	R-6 Axial	150 °C	-55 °C	Standard Recovery >500ns	200 mA	R-6

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Diode 100 V 6A Through Hole R-6
