19120080425

Active

HARTING Technology Group

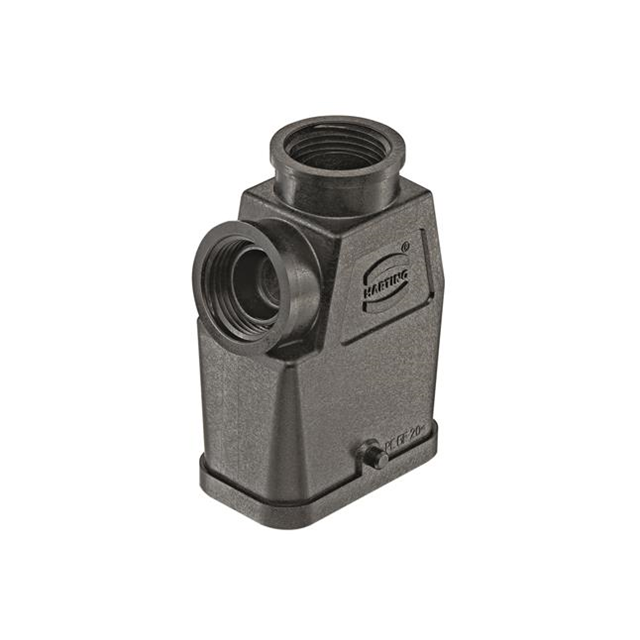

HAN-COMPACT PLASTIC HOOD, TOP ENTRY AND SIDE ENTRY, 2XM20

Search across all available documentation for this part.

Active

HARTING Technology Group

HAN-COMPACT PLASTIC HOOD, TOP ENTRY AND SIDE ENTRY, 2XM20

Technical Specifications

Parameters and characteristics for this part

Specification	19120080425

Connector Type	Hood
Housing Color	Black
Housing Material	Polycarbonate (PC)
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size / Dimension [x]	1.886 "
Size / Dimension [x]	47.9 mm
Size / Dimension [y]	28.8 mm
Size / Dimension [y]	1.134 in
Size / Dimension [z]	70.1 mm
Size / Dimension [z]	2.76 in
Style	Side and Top Entry
Thread Size	M20

Part	Connector Type	Housing Material	Lock Location	Housing Color	Style	Ingress Protection	Thread Size	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Housing Finish	Operating Temperature [Max]	Operating Temperature [Min]
HARTING Technology Group 19120080526	Hood	Zinc Die Cast	Locking Clip (1) on Base Bottom	Black	Side Entry	IP65 - Dust Tight Water Resistant	M25	73 mm	29 mm	1.142 in	1.909 "	48.5 mm	2.874 in	Powder Coated	125 °C	-40 °C
HARTING Technology Group 19127080411	Hood	Zinc Die Cast	Locking Clip (1) on Base Bottom	Black	Top Entry	IP65 - Dust Tight Water Resistant	M25	88.9 mm	29 mm	1.142 in	1.965 in	49.9 mm	3.5 "	Powder Coated	125 °C	-40 °C
HARTING Technology Group 19120080502	Hood	Zinc Die Cast	Locking Clip (1) on Base Bottom	Black	Side Entry	IP65 - Dust Tight Water Resistant	M25	59.5 mm	29 mm	1.142 in	1.965 in	49.9 mm	2.343 "	Nickel	125 °C	-40 °C
HARTING Technology Group 19120080425	Hood	Polycarbonate (PC)	Locking Clip (1) on Base Bottom	Black	Side and Top Entry	IP65 - Dust Tight Water Resistant	M20	70.1 mm	28.8 mm	1.134 in	1.886 "	47.9 mm	2.76 in		125 °C	-40 °C
HARTING Technology Group 19120080512	Hood	Zinc Die Cast	Locking Clip (1) on Base Bottom	Black	Side Entry	IP65 - Dust Tight Water Resistant	M25	70.9 mm	29 mm	1.142 in	1.965 in	49.9 mm	2.791 in	Nickel	125 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hood Connector Side and Top Entry M20 IP65 - Dust Tight, Water Resistant
