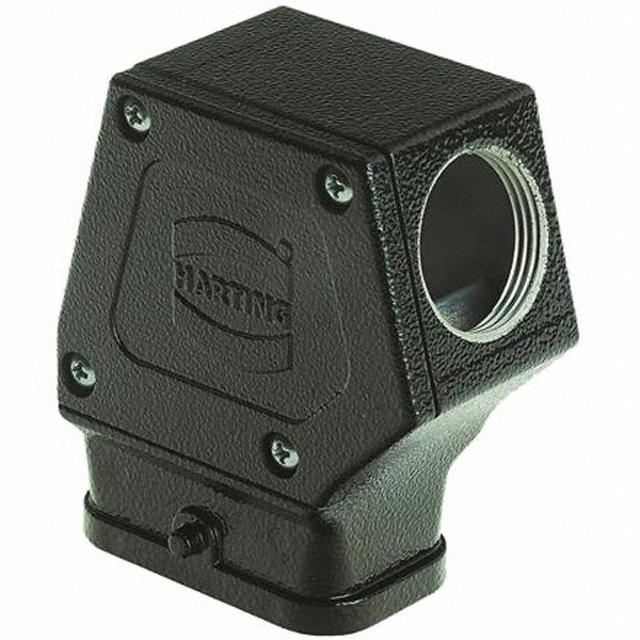

19120080526 - 19120080526

19120080526

Active
HARTING Technology Group

HEAVY DUTY CONNECTOR, BASE, CABLE MOUNT, SIDE ENTRY, ZINC BODY, 1 LEVER

Deep-Dive with AI

Documents19120080526 Prod Declaration CertDatasheet+1

Technical Specifications

Parameters and characteristics for this part

Specification19120080526
Connector TypeHood
Housing ColorBlack
Housing FinishPowder Coated
Housing MaterialZinc, Die Cast
Ingress ProtectionIP65 - Dust Tight, Water Resistant
Lock LocationLocking Clip (1) on Base Bottom
Operating Temperature [Max]125 °C
Operating Temperature [Min]-40 °C
Size / Dimension [x]1.909 "
Size / Dimension [x]48.5 mm
Size / Dimension [y]29 mm
Size / Dimension [y]1.142 in
Size / Dimension [z]73 mm
Size / Dimension [z]2.874 in
StyleSide Entry
Thread SizeM25

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 44.97
10$ 33.37
25$ 30.03
50$ 27.87
100$ 25.96
250$ 23.80
NewarkEach 1$ 40.29
5$ 38.23
10$ 36.38
25$ 34.69
50$ 33.34

Description

General part information

19120080 Series

Hood Connector Side Entry M25 IP65 - Dust Tight, Water Resistant
