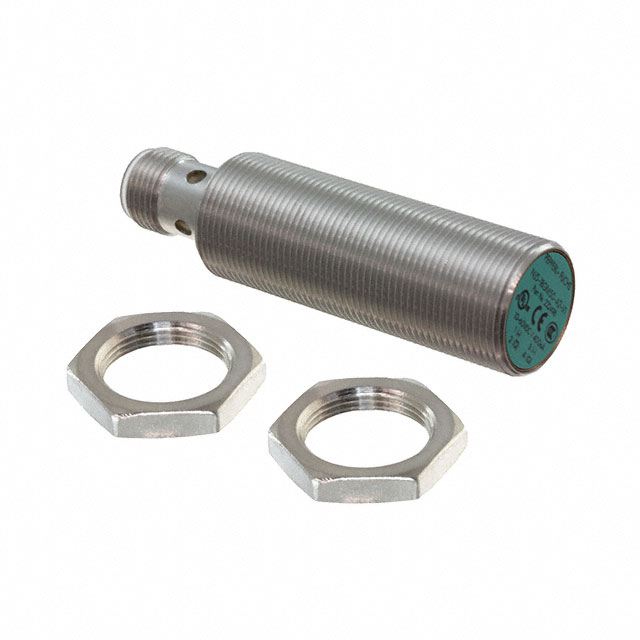

NBB5-18GM50-E2-V1

Active

PEPPERL+FUCHS

INDUCTIVE SEN 5MM PNP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

NBB5-18GM50-E2-V1

Active

PEPPERL+FUCHS

INDUCTIVE SEN 5MM PNP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	NBB5-18GM50-E2-V1

Indicator [custom]	LED
Ingress Protection	IP67
Material - Body	Nickel-Plated Brass
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Output Type	PNP-NO, 3-Wire
Package / Case	Cylinder, Threaded - M18
Sensing Distance	0.197 in
Sensing Distance	5 mm
Sensor Type	Inductive
Shielding	Unshielded
Termination Style	Connector
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

NBB5-18 Series

Part	Termination Style	Indicator [custom]	Sensor Type	Package / Case	Sensing Distance	Sensing Distance	Material - Body	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Output Type	Shielding	Voltage - Supply [Max]	Voltage - Supply [Min]
PEPPERL+FUCHS NBB5-18GM60-A2	Cable	LED	Inductive	Cylinder Threaded - M18	0.197 in	5 mm	Nickel-Plated Brass	70 °C	-25 °C	IP67	NPN-NC/NO 4-Wire	Unshielded	30 VDC	10 VDC
PEPPERL+FUCHS NBB5-18GM60-A0	Cable	LED	Inductive	Cylinder Threaded - M18	0.197 in	5 mm	Nickel-Plated Brass	70 °C	-25 °C	IP67	NPN-NC/NO 4-Wire	Unshielded	30 VDC	10 VDC
PEPPERL+FUCHS NBB5-18GM40-Z0	Cable	LED	Inductive	Cylinder Threaded - M18	0.197 in	5 mm	Nickel-Plated Brass	70 °C	-25 °C	IP67	SCR-NO 2-Wire	Unshielded	60 V	5 V
PEPPERL+FUCHS NBB5-18GM60-WS	Cable	LED	Inductive	Cylinder Threaded - M18	0.197 in	5 mm	Nickel-Plated Brass	70 °C	-25 °C	IP67	SCR-NO 2-Wire	Unshielded	253 VDC	20 VDC
PEPPERL+FUCHS NBB5-18GM50-E2-V1	Connector	LED	Inductive	Cylinder Threaded - M18	0.197 in	5 mm	Nickel-Plated Brass	70 °C	-40 °C	IP67	PNP-NO 3-Wire	Unshielded	30 VDC	10 VDC
PEPPERL+FUCHS NBB5-18GM50-E0-V1	Connector	LED	Inductive	Cylinder Threaded - M18	0.197 in	5 mm	Nickel-Plated Brass	70 °C	-25 °C	IP67	NPN-NO 3-Wire	Unshielded	30 VDC	10 VDC
PEPPERL+FUCHS NBB5-18GM50-E2-C3-V1	Connector	LED	Inductive	Cylinder Threaded - M18	0.197 in	5 mm	Polytetrafluoroethylene (PTFE)	70 °C	-25 °C	IP67	PNP-NO 3-Wire	Unshielded	30 VDC	10 VDC
PEPPERL+FUCHS NBB5-18GM50-E2-C-V1	Connector	LED	Inductive	Cylinder Threaded - M18	0.197 in	5 mm	Polytetrafluoroethylene (PTFE)	70 °C	-25 °C	IP67	PNP-NO 3-Wire	Unshielded	30 VDC	10 VDC
PEPPERL+FUCHS NBB5-18GM60-WS-V12	Connector	LED	Inductive	Cylinder Threaded - M18	0.197 in	5 mm	Nickel-Plated Brass	70 °C	-25 °C	IP67	SCR-NO 2-Wire	Unshielded	253 VDC	20 VDC
PEPPERL+FUCHS NBB5-18GM50-E0	Cable	LED	Inductive	Cylinder Threaded - M18	0.197 in	5 mm	Nickel-Plated Brass	70 °C	-25 °C	IP67	NPN-NO 3-Wire	Unshielded	30 VDC	10 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 106.63
		10	$ 88.86
		25	$ 85.89
		100	$ 82.93

Description

General part information

NBB5-18 Series

INDUCTIVE SEN 5MM PNP

Documents

Technical documentation and resources
