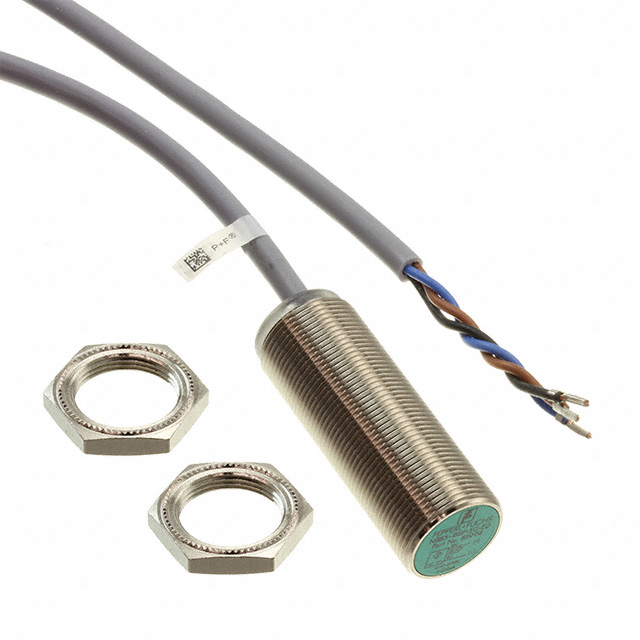

NBB5-18GM50-E0

Active

PEPPERL+FUCHS

INDUCTIVE PROXIMITY SENSOR, BASIC SERIES, 5 MM, CYLINDRICAL, NPN, 10 TO 30 VDC, PRE-WIRED

Deep-Dive with AI

Search across all available documentation for this part.

NBB5-18GM50-E0

Active

PEPPERL+FUCHS

INDUCTIVE PROXIMITY SENSOR, BASIC SERIES, 5 MM, CYLINDRICAL, NPN, 10 TO 30 VDC, PRE-WIRED

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	NBB5-18GM50-E0

Indicator [custom]	LED
Ingress Protection	IP67
Material - Body	Nickel-Plated Brass
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Output Type	NPN-NO, 3-Wire
Package / Case	Cylinder, Threaded - M18
Sensing Distance	0.197 in
Sensing Distance	5 mm
Sensor Type	Inductive
Shielding	Unshielded
Termination Style	Cable
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

NBB5-18 Series

Part	Termination Style	Indicator [custom]	Sensor Type	Package / Case	Sensing Distance	Sensing Distance	Material - Body	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Output Type	Shielding	Voltage - Supply [Max]	Voltage - Supply [Min]
PEPPERL+FUCHS NBB5-18GM60-A2	Cable	LED	Inductive	Cylinder Threaded - M18	0.197 in	5 mm	Nickel-Plated Brass	70 °C	-25 °C	IP67	NPN-NC/NO 4-Wire	Unshielded	30 VDC	10 VDC
PEPPERL+FUCHS NBB5-18GM60-A0	Cable	LED	Inductive	Cylinder Threaded - M18	0.197 in	5 mm	Nickel-Plated Brass	70 °C	-25 °C	IP67	NPN-NC/NO 4-Wire	Unshielded	30 VDC	10 VDC
PEPPERL+FUCHS NBB5-18GM40-Z0	Cable	LED	Inductive	Cylinder Threaded - M18	0.197 in	5 mm	Nickel-Plated Brass	70 °C	-25 °C	IP67	SCR-NO 2-Wire	Unshielded	60 V	5 V
PEPPERL+FUCHS NBB5-18GM60-WS	Cable	LED	Inductive	Cylinder Threaded - M18	0.197 in	5 mm	Nickel-Plated Brass	70 °C	-25 °C	IP67	SCR-NO 2-Wire	Unshielded	253 VDC	20 VDC
PEPPERL+FUCHS NBB5-18GM50-E2-V1	Connector	LED	Inductive	Cylinder Threaded - M18	0.197 in	5 mm	Nickel-Plated Brass	70 °C	-40 °C	IP67	PNP-NO 3-Wire	Unshielded	30 VDC	10 VDC
PEPPERL+FUCHS NBB5-18GM50-E0-V1	Connector	LED	Inductive	Cylinder Threaded - M18	0.197 in	5 mm	Nickel-Plated Brass	70 °C	-25 °C	IP67	NPN-NO 3-Wire	Unshielded	30 VDC	10 VDC
PEPPERL+FUCHS NBB5-18GM50-E2-C3-V1	Connector	LED	Inductive	Cylinder Threaded - M18	0.197 in	5 mm	Polytetrafluoroethylene (PTFE)	70 °C	-25 °C	IP67	PNP-NO 3-Wire	Unshielded	30 VDC	10 VDC
PEPPERL+FUCHS NBB5-18GM50-E2-C-V1	Connector	LED	Inductive	Cylinder Threaded - M18	0.197 in	5 mm	Polytetrafluoroethylene (PTFE)	70 °C	-25 °C	IP67	PNP-NO 3-Wire	Unshielded	30 VDC	10 VDC
PEPPERL+FUCHS NBB5-18GM60-WS-V12	Connector	LED	Inductive	Cylinder Threaded - M18	0.197 in	5 mm	Nickel-Plated Brass	70 °C	-25 °C	IP67	SCR-NO 2-Wire	Unshielded	253 VDC	20 VDC
PEPPERL+FUCHS NBB5-18GM50-E0	Cable	LED	Inductive	Cylinder Threaded - M18	0.197 in	5 mm	Nickel-Plated Brass	70 °C	-25 °C	IP67	NPN-NO 3-Wire	Unshielded	30 VDC	10 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 117.24
		5	$ 98.89
		10	$ 91.91
		25	$ 83.44
		50	$ 77.55
		100	$ 73.31
Newark	Each	1	$ 124.36
		10	$ 113.17
		25	$ 109.44

Description

General part information

NBB5-18 Series

The NBB5-18GM50-E0 is an Inductive Proximity Sensor that is the preferred choice for the majority of applications requiring accurate, non-contact detection of metallic objects in machinery equipment. Pepperl+Fuchs offers innovative, high quality inductive sensor to meet the needs of the worldwide automation and process control markets. Standard inductive sensor features smooth or threaded stainless housings, polarity reversal and short-circuit protected, LED status indication.
