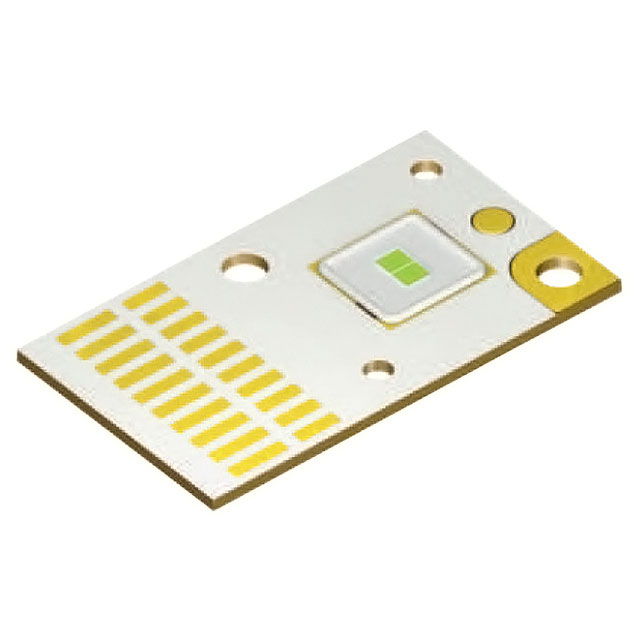

LE CG P1A-6T5U-A

Obsolete

ams-OSRAM USA INC.

LED MOD OSRAM OSTAR GREEN RECT

Search across all available documentation for this part.

Obsolete

ams-OSRAM USA INC.

LED MOD OSRAM OSTAR GREEN RECT

Technical Specifications

Parameters and characteristics for this part

Specification	LE CG P1A-6T5U-A

Color	Green
Configuration	Rectangle
Current - Test	12 A
Height [z]	1.8 mm
Lens Type	Flat
Lumens/Watt @ Current - Test	96 lm/W
Luminous Flux @ Current/Temperature	4075 lm
Size / Dimension [x]	27 mm
Size / Dimension [y]	15.5 mm
Type	LED Module
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	3.55 V
Wavelength	520 nm

Part	Type	Height [z]	Current - Max [Max]	Lens Type	Features	Configuration	Current - Test	Lumens/Watt @ Current - Test	Size / Dimension [y]	Size / Dimension [x]	Luminous Flux @ Current/Temperature	Viewing Angle	Voltage - Forward (Vf) (Typ)	Color	Wavelength	Luminous Flux @ Current/Temperature [Max]	Luminous Flux @ Current/Temperature [Min]
ams-OSRAM USA INC. LE CG P1A-7T8T-1-0-F00-T01	LED Module	1.8 mm	10 A	Flat	With Connector	Rectangle	12 A	94 lm/W	15.5 mm	27 mm	4025 lm	120 °	3.55 V	Green
ams-OSRAM USA INC. LE CG P1AQ-TUUS-A-0-F00	LED Module	1.9 mm	10 A	Flat	With Connector	Rectangle	6 A	117 lm/W	15.5 mm	27 mm	4910 lm	120 °	7 V	Green
ams-OSRAM USA INC. LE CG P1A-6T5U-A	LED Module	1.8 mm		Flat		Rectangle	12 A	96 lm/W	15.5 mm	27 mm	4075 lm	120 °	3.55 V	Green	520 nm
ams-OSRAM USA INC. LE CG P1A-5T5U-A-0-F00-T01	LED Module	1.8 mm	10 A	Flat	With Connector	Rectangle	12 A		15.5 mm	27 mm		120 °	3.55 V	Green
ams-OSRAM USA INC. LE CG P1A-7T6U-A-0-F00-T01	LED Module	1.8 mm	10 A	Flat	With Connector	Rectangle	12 A	107 lm/W	15.5 mm	27 mm	4575 lm	120 °	3.55 V	Green		5600 lm	3550 lm
ams-OSRAM USA INC. LE CG P1A-7T5U-A-0-F00-T01	LED Module	1.8 mm	10 A	Flat	With Connector	Rectangle	12 A	100 lm/W	15.5 mm	27 mm	4275 lm	120 °	3.55 V	Green

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting COBs Engines Modules LED Module OSRAM OSTAR Green Rectangle
