LE CG P1AQ-TUUS-A-0-F00

Active

ams-OSRAM USA INC.

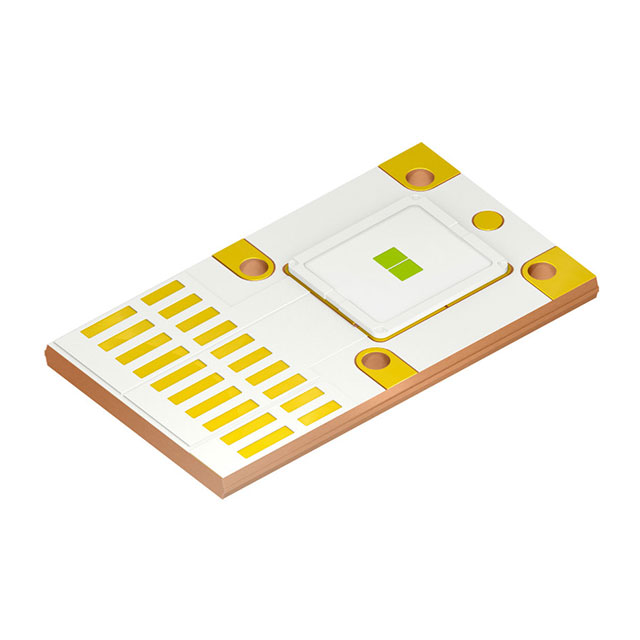

LED MOD OSRAM OSTAR GREEN RECT

Search across all available documentation for this part.

Active

ams-OSRAM USA INC.

LED MOD OSRAM OSTAR GREEN RECT

Technical Specifications

Parameters and characteristics for this part

Specification	LE CG P1AQ-TUUS-A-0-F00

Color	Green
Configuration	Rectangle
Current - Max [Max]	10 A
Current - Test	6 A
Features	With Connector
Height [z]	1.9 mm
Lens Type	Flat
Lumens/Watt @ Current - Test	117 lm/W
Luminous Flux @ Current/Temperature	4910 lm
Size / Dimension [x]	27 mm
Size / Dimension [y]	15.5 mm
Type	LED Module
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	7 V

Part	Type	Height [z]	Current - Max [Max]	Lens Type	Features	Configuration	Current - Test	Lumens/Watt @ Current - Test	Size / Dimension [y]	Size / Dimension [x]	Luminous Flux @ Current/Temperature	Viewing Angle	Voltage - Forward (Vf) (Typ)	Color	Wavelength	Luminous Flux @ Current/Temperature [Max]	Luminous Flux @ Current/Temperature [Min]
ams-OSRAM USA INC. LE CG P1A-7T8T-1-0-F00-T01	LED Module	1.8 mm	10 A	Flat	With Connector	Rectangle	12 A	94 lm/W	15.5 mm	27 mm	4025 lm	120 °	3.55 V	Green
ams-OSRAM USA INC. LE CG P1AQ-TUUS-A-0-F00	LED Module	1.9 mm	10 A	Flat	With Connector	Rectangle	6 A	117 lm/W	15.5 mm	27 mm	4910 lm	120 °	7 V	Green
ams-OSRAM USA INC. LE CG P1A-6T5U-A	LED Module	1.8 mm		Flat		Rectangle	12 A	96 lm/W	15.5 mm	27 mm	4075 lm	120 °	3.55 V	Green	520 nm
ams-OSRAM USA INC. LE CG P1A-5T5U-A-0-F00-T01	LED Module	1.8 mm	10 A	Flat	With Connector	Rectangle	12 A		15.5 mm	27 mm		120 °	3.55 V	Green
ams-OSRAM USA INC. LE CG P1A-7T6U-A-0-F00-T01	LED Module	1.8 mm	10 A	Flat	With Connector	Rectangle	12 A	107 lm/W	15.5 mm	27 mm	4575 lm	120 °	3.55 V	Green		5600 lm	3550 lm
ams-OSRAM USA INC. LE CG P1A-7T5U-A-0-F00-T01	LED Module	1.8 mm	10 A	Flat	With Connector	Rectangle	12 A	100 lm/W	15.5 mm	27 mm	4275 lm	120 °	3.55 V	Green

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting COBs Engines Modules LED Module OSRAM OSTAR® Projection Power Green Rectangle
