171-050-213R001
ActiveMH Connectors

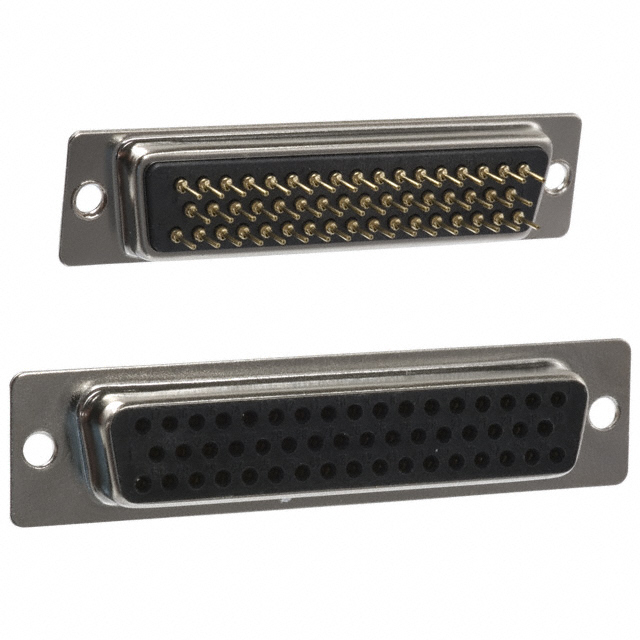

D SUB CONNECTOR, DB50, 50 CONTACTS, RECEPTACLE, SOLDER, DD, 171 SERIES, STEEL BODY
Deep-Dive with AI
Search across all available documentation for this part.
171-050-213R001
ActiveMH Connectors
D SUB CONNECTOR, DB50, 50 CONTACTS, RECEPTACLE, SOLDER, DD, 171 SERIES, STEEL BODY
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 171-050-213R001 |
|---|---|
| Color | Black |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Form | Stamped |
| Contact Material | Brass |
| Contact Type | Signal |
| Current Rating (Amps) | 5 A |
| Dielectric Material | Polyamide (PA9T), Nylon 9T |
| Flange Feature | Housing/Shell (Unthreaded) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 50 |
| Number of Rows | 3 |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 5 |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
171-050 Series
The 171 series high performance Dip Solder D-sub Connectors with stamped contacts. It has brass male pins contact, phosphor bronze female pins contact with gold flash on entire contact-plating, glass-filled thermoplastic insulator and steel, nickel plated shell.
