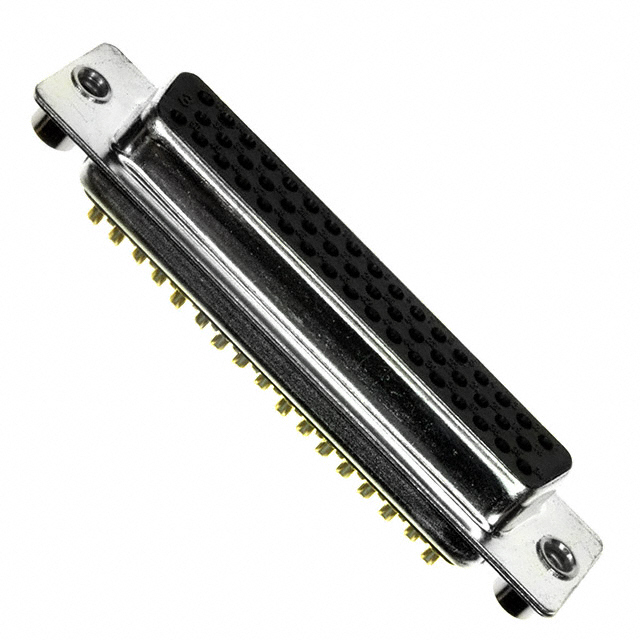

171-050-202-021

Obsolete

MH Connectors

CONN D-SUB RCPT 50POS PNL MNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

171-050-202-021

Obsolete

MH Connectors

CONN D-SUB RCPT 50POS PNL MNT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	171-050-202-021

Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Form	Stamped
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polybutylene Terephthalate (PBT)
Flange Feature	Cable Side
Material Flammability Rating	UL94 V-0
Number of Positions	50
Number of Rows	3
Shell Size, Connector Layout	5
Wire Gauge [Max]	28 AWG
Wire Gauge [Min]	20 AWG

171-050 Series

Part	Dielectric Material	Material Flammability Rating	Number of Rows	Flange Feature	Connector Style	Connector Type	Contact Finish	Contact Type	Current Rating (Amps)	Features	Contact Finish Thickness	Color	Contact Form	Number of Positions	Shell Size, Connector Layout	Wire Gauge [Min]	Wire Gauge [Max]	Termination	Mounting Type	Contact Material	Shell Material, Finish
MH Connectors 171-050-102-021	Polybutylene Terephthalate (PBT)	UL94 V-0	3	Cable Side	D-Sub	Male Pins Plug	Gold	Signal	5 A	Grounding Indents	Flash	Black	Stamped	50	5	20 AWG	28 AWG
MH Connectors 171-050-212-001	Polybutylene Terephthalate (PBT)	UL94 V-0	3	Housing/Shell (Unthreaded)	D-Sub	Receptacle Female Sockets	Gold	Signal	5 A		Flash	Black	Stamped	50	5			Solder	Panel Mount Through Hole
MH Connectors 171-050-213R001	Polyamide (PA9T) Nylon 9T	UL94 V-0	3	Housing/Shell (Unthreaded)	D-Sub	Receptacle Female Sockets	Gold	Signal	5 A		Flash	Black	Stamped	50	5			Solder	Panel Mount Through Hole	Brass	Nickel Plated Steel
MH Connectors 171-050-113R911	Polyamide (PA9T) Nylon 9T	UL94 V-0	3	Board Side (4-40) Mating Side Female Screwlock (4-40)	D-Sub	Male Pins Plug	Gold	Signal	5 A	Board Lock Grounding Indents	Flash	Black	Stamped	50	5			Solder	Panel Mount Through Hole	Brass	Nickel Plated Steel
MH Connectors 171-050-202-011	Polybutylene Terephthalate (PBT)	UL94 V-0	3	Cable Side	D-Sub	Receptacle Female Sockets	Gold	Signal	5 A		Flash	Black	Stamped	50	5	20 AWG	28 AWG
MH Connectors 171-050-202-021	Polybutylene Terephthalate (PBT)	UL94 V-0	3	Cable Side	D-Sub	Receptacle Female Sockets	Gold	Signal	5 A		Flash	Black	Stamped	50	5	20 AWG	28 AWG
MH Connectors 171-050-201L011	Polybutylene Terephthalate (PBT)	UL94 V-0	3	Cable Side	D-Sub	Receptacle Female Sockets	Gold	Signal	5 A		Flash	Black	Stamped	50	5	20 AWG	28 AWG				Steel Yellow Chromate Plated Zinc
MH Connectors 171-050-212-021	Polybutylene Terephthalate (PBT)	UL94 V-0	3	4-40 Board Side	D-Sub	Receptacle Female Sockets	Gold	Signal	5 A		Flash	Black	Stamped	50	5			Solder	Panel Mount Through Hole
MH Connectors 171-050-213R011	Polyamide (PA9T) Nylon 9T	UL94 V-0	3	4-40 Board Side	D-Sub	Receptacle Female Sockets	Gold	Signal	5 A		Flash	Black	Stamped	50	5			Solder	Panel Mount Through Hole	Brass	Nickel Plated Steel
MH Connectors 171-050-102L011	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	3	Cable Side	D-Sub	Male Pins Plug	Gold	Signal	5 A	Grounding Indents	Flash	Black	Stamped	50	5	20 AWG	28 AWG			Copper Alloy

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

171-050 Series

50 Position D-Sub Receptacle, Female Sockets Connector
