09120012661

Active

HARTING Technology Group

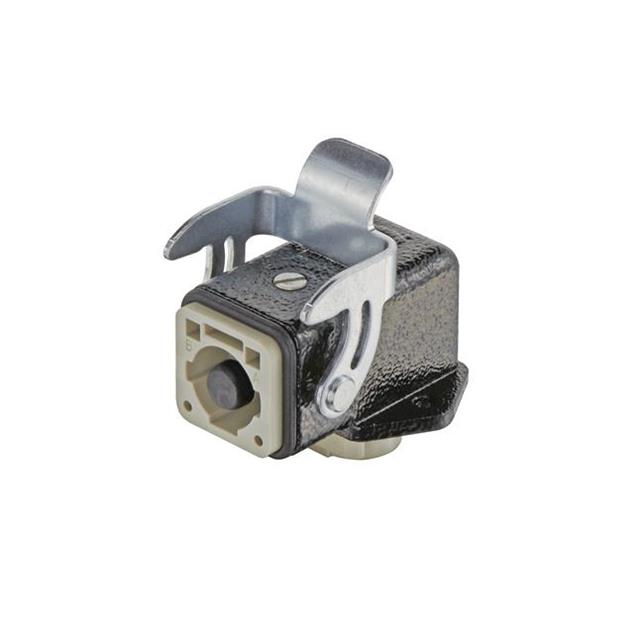

HEAVY DUTY CONN, PLUG, 1POS, PANEL

Search across all available documentation for this part.

Active

HARTING Technology Group

HEAVY DUTY CONN, PLUG, 1POS, PANEL

Technical Specifications

Parameters and characteristics for this part

Part	Termination Style	Material Flammability Rating	Connector Type	Gender	Size	Number of Positions	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Housing Material	Color	Contact Finish	Contact Material	Current Rating (Amps)	Style	Contents
HARTING Technology Group 09120012774	Crimp	UL94 V-0	Insert with Firewire	Male	3 A	6	50 V	85 °C	-40 °C	Polycarbonate (PC)
HARTING Technology Group 09120012751	Screw	UL94 V-0		Female	3 A	1	400 V	125 °C	-40 °C	Nylon Polyamide (PA) Polycarbonate (PC)	Gray	Silver	Copper Alloy	100 A
HARTING Technology Group 09120012661	Screw				3 A	1									Side Entry	Panel Connector Assembly
HARTING Technology Group 09120012651	Screw	UL94 V-0		Male	3 A	1	400 V	125 °C	-40 °C	Nylon Polyamide (PA) Polycarbonate (PC)	Gray	Silver	Copper Alloy	100 A
HARTING Technology Group 09120012794	Crimp	UL94 V-0	Insert with USB	Male	3 A	4	50 V	85 °C	-40 °C	Polycarbonate (PC)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1 Panel Connector Assembly Side Entry Screw
