09120012751

Active

HARTING Technology Group

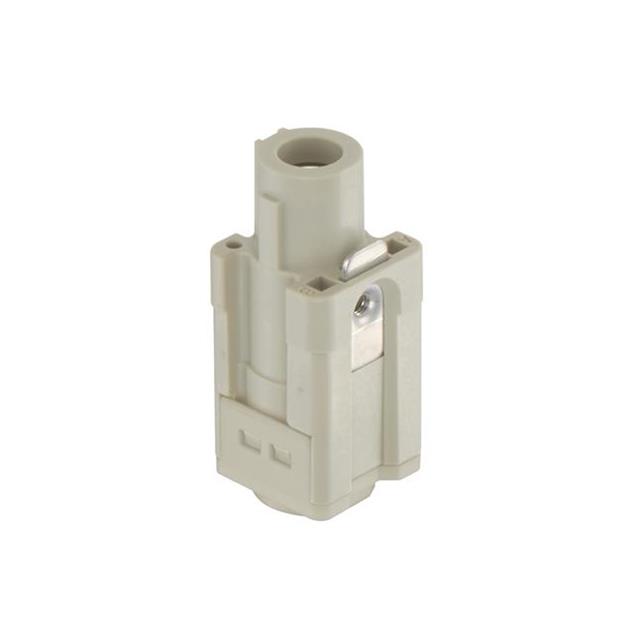

HEAVY DUTY INSERT, RCPT, 1POS, 6-4AWG

Search across all available documentation for this part.

Active

HARTING Technology Group

HEAVY DUTY INSERT, RCPT, 1POS, 6-4AWG

Technical Specifications

Parameters and characteristics for this part

Specification	09120012751

Color	Gray
Contact Finish	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	100 A
Gender	Female
Housing Material	Polyamide (PA), Polycarbonate (PC), Nylon
Material Flammability Rating	UL94 V-0
Number of Positions	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	3 A
Termination Style	Screw
Voltage Rating	400 V

Part	Termination Style	Material Flammability Rating	Connector Type	Gender	Size	Number of Positions	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Housing Material	Color	Contact Finish	Contact Material	Current Rating (Amps)	Style	Contents
HARTING Technology Group 09120012774	Crimp	UL94 V-0	Insert with Firewire	Male	3 A	6	50 V	85 °C	-40 °C	Polycarbonate (PC)
HARTING Technology Group 09120012751	Screw	UL94 V-0		Female	3 A	1	400 V	125 °C	-40 °C	Nylon Polyamide (PA) Polycarbonate (PC)	Gray	Silver	Copper Alloy	100 A
HARTING Technology Group 09120012661	Screw				3 A	1									Side Entry	Panel Connector Assembly
HARTING Technology Group 09120012651	Screw	UL94 V-0		Male	3 A	1	400 V	125 °C	-40 °C	Nylon Polyamide (PA) Polycarbonate (PC)	Gray	Silver	Copper Alloy	100 A
HARTING Technology Group 09120012794	Crimp	UL94 V-0	Insert with USB	Male	3 A	4	50 V	85 °C	-40 °C	Polycarbonate (PC)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Female Insert Gray 1 Position Screw
