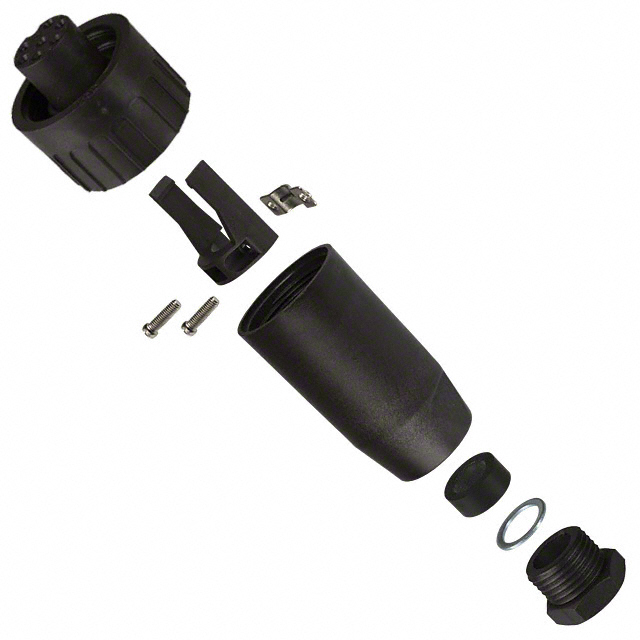

T3105 001
ObsoleteAmphenol Tuchel Industrial
CONN PLUG FMALE 7P SILVER SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
T3105 001
ObsoleteAmphenol Tuchel Industrial
CONN PLUG FMALE 7P SILVER SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | T3105 001 |
|---|---|
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Silver |
| Current Rating (Amps) | 10 A |
| Features | Strain Relief |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 7 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Primary Material | Plastic |
| Termination | Solder |
| Voltage Rating | 250 VDC |
T310 Series
| Part | Primary Material | Termination | Contact Finish - Mating | Features | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Mounting Type | Number of Positions | Voltage Rating | Ingress Protection | Current Rating (Amps) | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Tuchel Industrial | Plastic | Screw | Silver | Strain Relief | 100 °C | -40 °C | Male Pins Plug | Free Hanging (In-Line) | 4 | 400 V | IP67 - Dust Tight Waterproof | 16 A | |
Amphenol Tuchel Industrial | Plastic | Solder | Silver | 100 °C | -40 °C | Receptacle Female Sockets | 7 | 250 VDC | IP67 - Dust Tight Waterproof | 10 A | Flange | ||
Amphenol Tuchel Industrial | Plastic | Solder | Silver | Strain Relief | 100 °C | -40 °C | Male Pins Plug | Free Hanging (In-Line) | 7 | 250 VDC | IP67 - Dust Tight Waterproof | 10 A | |
Amphenol Tuchel Industrial | Plastic | Solder | Silver | 100 °C | -40 °C | Male Pins Receptacle | 7 | 250 VDC | IP67 - Dust Tight Waterproof | 10 A | Flange | ||
Amphenol Tuchel Industrial | Plastic | Screw | Silver | Strain Relief | 100 °C | -40 °C | Female Sockets Plug | Free Hanging (In-Line) | 4 | 400 V | IP67 - Dust Tight Waterproof | 16 A | |
Amphenol Tuchel Industrial | Plastic | Solder | Silver | Strain Relief | 100 °C | -40 °C | Female Sockets Plug | Free Hanging (In-Line) | 7 | 250 VDC | IP67 - Dust Tight Waterproof | 10 A | |
Amphenol Tuchel Industrial | Plastic | Screw | Silver | Strain Relief | 100 °C | -40 °C | Male Pins Plug | Free Hanging (In-Line) | 4 | 400 V | IP67 - Dust Tight Waterproof | 16 A |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
T310 Series
7 Position Circular Connector Plug, Female Sockets Solder
Documents
Technical documentation and resources
No documents available
