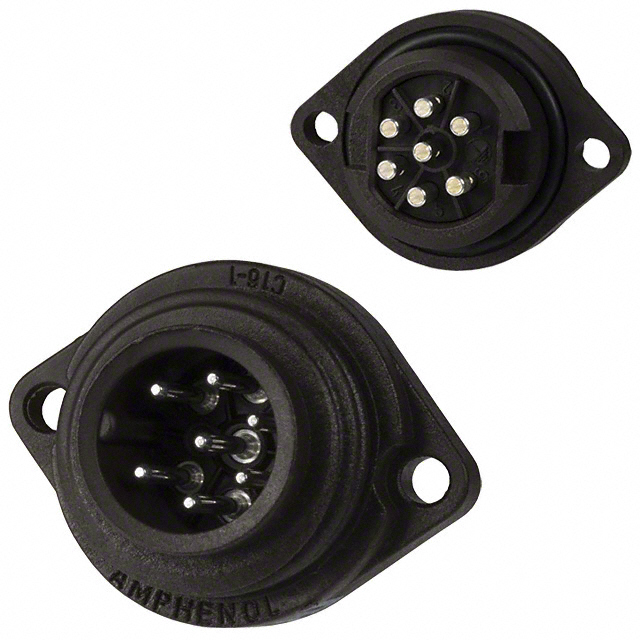

T3106 000

Obsolete

Amphenol Tuchel Industrial

CONN RCPT MALE 7POS SILVER SLDR

Search across all available documentation for this part.

Obsolete

Amphenol Tuchel Industrial

CONN RCPT MALE 7POS SILVER SLDR

Technical Specifications

Parameters and characteristics for this part

Part	Primary Material	Termination	Contact Finish - Mating	Features	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Mounting Type	Number of Positions	Voltage Rating	Ingress Protection	Current Rating (Amps)	Mounting Feature
Amphenol Tuchel Industrial T3108 001	Plastic	Screw	Silver	Strain Relief	100 °C	-40 °C	Male Pins Plug	Free Hanging (In-Line)	4	400 V	IP67 - Dust Tight Waterproof	16 A
Amphenol Tuchel Industrial T3107 000	Plastic	Solder	Silver		100 °C	-40 °C	Receptacle Female Sockets		7	250 VDC	IP67 - Dust Tight Waterproof	10 A	Flange
Amphenol Tuchel Industrial T3104 101	Plastic	Solder	Silver	Strain Relief	100 °C	-40 °C	Male Pins Plug	Free Hanging (In-Line)	7	250 VDC	IP67 - Dust Tight Waterproof	10 A
Amphenol Tuchel Industrial T3106 000	Plastic	Solder	Silver		100 °C	-40 °C	Male Pins Receptacle		7	250 VDC	IP67 - Dust Tight Waterproof	10 A	Flange
Amphenol Tuchel Industrial T3109 001	Plastic	Screw	Silver	Strain Relief	100 °C	-40 °C	Female Sockets Plug	Free Hanging (In-Line)	4	400 V	IP67 - Dust Tight Waterproof	16 A
Amphenol Tuchel Industrial T3105 001	Plastic	Solder	Silver	Strain Relief	100 °C	-40 °C	Female Sockets Plug	Free Hanging (In-Line)	7	250 VDC	IP67 - Dust Tight Waterproof	10 A
Amphenol Tuchel Industrial T3108 101	Plastic	Screw	Silver	Strain Relief	100 °C	-40 °C	Male Pins Plug	Free Hanging (In-Line)	4	400 V	IP67 - Dust Tight Waterproof	16 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

7 Position Circular Connector Receptacle, Male Pins Solder

Technical documentation and resources

No documents available
