325011-02-0
ActiveCurtis Industries

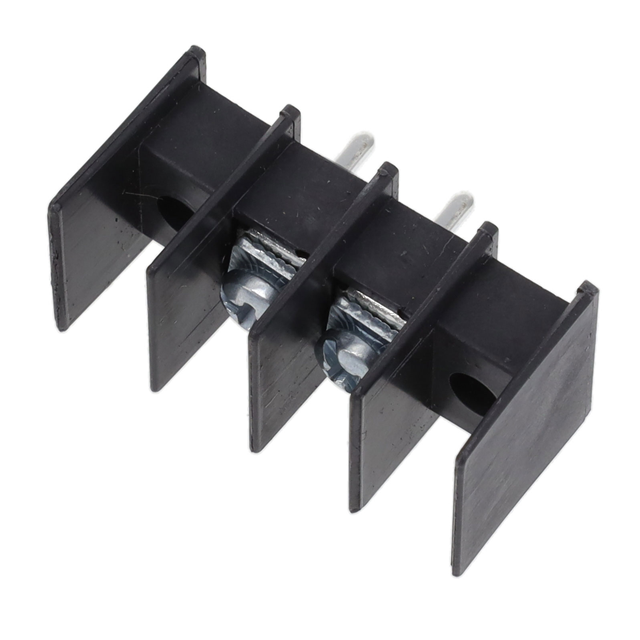

CONN BARRIER STRIP 2CIRC 0.325"
Deep-Dive with AI
Search across all available documentation for this part.
325011-02-0
ActiveCurtis Industries
CONN BARRIER STRIP 2CIRC 0.325"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 325011-02-0 |
|---|---|
| Barrier Type | 2 Wall (Dual) |
| Bottom Termination | PC Pin |
| Current Rating (Amps) | 15 A |
| Features | Flange |
| Material - Insulation | Polypropylene (PP) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Chassis, Panel, Through Hole |
| Number of Circuits | 2 |
| Number of Rows | 1 |
| Number of Wire Entries | 2 |
| Operating Temperature | 105 C |
| Pitch [x] | 8.26 mm |
| Pitch [x] | 0.325 in |
| Terminal Block Type | Barrier Block |
| Top Termination | Screws |
| Voltage Rating | 300 VDC |
| Wire Gauge [Max] | 22 AWG |
| Wire Gauge [Min] | 14 AWG |
325011 Series
| Part | Current Rating (Amps) | Top Termination | Features | Barrier Type | Pitch [x] | Pitch [x] | Operating Temperature | Material - Insulation | Voltage Rating | Material Flammability Rating | Wire Gauge [Min] | Wire Gauge [Max] | Terminal Block Type | Number of Rows | Number of Circuits | Bottom Termination | Mounting Type | Number of Wire Entries | Number of Wire Entries [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Curtis Industries | 15 A | Screws | Flange | 2 Wall (Dual) | 8.26 mm | 0.325 in | 105 C | Polypropylene (PP) | 300 VDC | UL94 V-0 | 14 AWG | 22 AWG | Barrier Block | 1 | 24 | PC Pin | Chassis Panel Through Hole | ||
Curtis Industries | 15 A | Screws | Flange | 2 Wall (Dual) | 8.26 mm | 0.325 in | 105 C | Polypropylene (PP) | 300 VDC | UL94 V-0 | 14 AWG | 22 AWG | Barrier Block | 1 | 18 | PC Pin | Chassis Panel Through Hole | 18 | |
Curtis Industries | 15 A | Screws | Flange | 2 Wall (Dual) | 8.26 mm | 0.325 in | 105 C | Polypropylene (PP) | 300 VDC | UL94 V-0 | 14 AWG | 22 AWG | Barrier Block | 1 | 17 | PC Pin | Chassis Panel Through Hole | 17 | |
Curtis Industries | 15 A | Screws | Flange | 2 Wall (Dual) | 8.26 mm | 0.325 in | 105 C | Polypropylene (PP) | 300 VDC | UL94 V-0 | 14 AWG | 22 AWG | Barrier Block | 1 | 20 | PC Pin | Chassis Panel Through Hole | 20 | |
Curtis Industries | 15 A | Screws | Flange | 2 Wall (Dual) | 8.26 mm | 0.325 in | 105 C | Polypropylene (PP) | 300 VDC | UL94 V-0 | 14 AWG | 22 AWG | Barrier Block | 1 | 12 | PC Pin | Chassis Panel Through Hole | 12 | |
Curtis Industries | 15 A | Screws | Flange | 2 Wall (Dual) | 8.26 mm | 0.325 in | 105 C | Polypropylene (PP) | 300 VDC | UL94 V-0 | 14 AWG | 22 AWG | Barrier Block | 1 | 10 | PC Pin | Chassis Panel Through Hole | 10 | |
Curtis Industries | 15 A | Screws | Flange | 2 Wall (Dual) | 8.26 mm | 0.325 in | 105 C | Polypropylene (PP) | 300 VDC | UL94 V-0 | 14 AWG | 22 AWG | Barrier Block | 1 | 2 | PC Pin | Chassis Panel Through Hole | 2 | |
Curtis Industries | 15 A | Screws | Flange | 2 Wall (Dual) | 8.26 mm | 0.325 in | 105 C | Polypropylene (PP) | 300 VDC | UL94 V-0 | 14 AWG | 22 AWG | Barrier Block | 1 | 26 | PC Pin | Chassis Panel Through Hole | 26 | |
Curtis Industries | 15 A | Screws | Flange | 2 Wall (Dual) | 8.26 mm | 0.325 in | 105 C | Polypropylene (PP) | 300 VDC | UL94 V-0 | 14 AWG | 22 AWG | Barrier Block | 1 | 23 | PC Pin | Chassis Panel Through Hole | 23 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.32 | |
| 10 | $ 2.37 | |||
| 30 | $ 2.01 | |||
| 50 | $ 1.88 | |||
| 100 | $ 1.72 | |||
| 250 | $ 1.56 | |||
| 500 | $ 1.46 | |||
| 1000 | $ 1.39 | |||
| 5000 | $ 1.27 | |||
Description
General part information
325011 Series
2 Circuit 0.325" (8.26mm) Barrier Block Connector Screws
