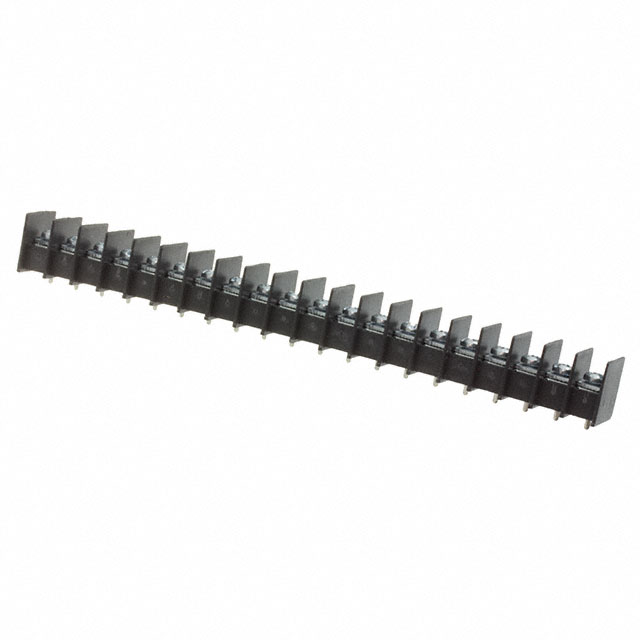

325011-20-0

Active

Curtis Industries

CONN BARRIER STRP 20CIRC 0.325"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Terminal Blocks Catalog

325011-20-0

Active

Curtis Industries

CONN BARRIER STRP 20CIRC 0.325"

Deep-Dive with AI

DocumentsDatasheet Terminal Blocks Catalog

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	325011-20-0

Barrier Type	2 Wall (Dual)
Bottom Termination	PC Pin
Current Rating (Amps)	15 A
Features	Flange
Material - Insulation	Polypropylene (PP)
Material Flammability Rating	UL94 V-0
Mounting Type	Chassis, Panel, Through Hole
Number of Circuits	20
Number of Rows	1
Number of Wire Entries	20
Operating Temperature	105 C
Pitch [x]	8.26 mm
Pitch [x]	0.325 in
Terminal Block Type	Barrier Block
Top Termination	Screws
Voltage Rating	300 VDC
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	14 AWG

325011 Series

Part	Current Rating (Amps)	Top Termination	Features	Barrier Type	Pitch [x]	Pitch [x]	Operating Temperature	Material - Insulation	Voltage Rating	Material Flammability Rating	Wire Gauge [Min]	Wire Gauge [Max]	Terminal Block Type	Number of Rows	Number of Circuits	Bottom Termination	Mounting Type	Number of Wire Entries	Number of Wire Entries [custom]
Curtis Industries 325011-24-0	15 A	Screws	Flange	2 Wall (Dual)	8.26 mm	0.325 in	105 C	Polypropylene (PP)	300 VDC	UL94 V-0	14 AWG	22 AWG	Barrier Block	1	24	PC Pin	Chassis Panel Through Hole
Curtis Industries 325011-18-0	15 A	Screws	Flange	2 Wall (Dual)	8.26 mm	0.325 in	105 C	Polypropylene (PP)	300 VDC	UL94 V-0	14 AWG	22 AWG	Barrier Block	1	18	PC Pin	Chassis Panel Through Hole	18
Curtis Industries 325011-17-0	15 A	Screws	Flange	2 Wall (Dual)	8.26 mm	0.325 in	105 C	Polypropylene (PP)	300 VDC	UL94 V-0	14 AWG	22 AWG	Barrier Block	1	17	PC Pin	Chassis Panel Through Hole	17
Curtis Industries 325011-20-0	15 A	Screws	Flange	2 Wall (Dual)	8.26 mm	0.325 in	105 C	Polypropylene (PP)	300 VDC	UL94 V-0	14 AWG	22 AWG	Barrier Block	1	20	PC Pin	Chassis Panel Through Hole	20
Curtis Industries 325011-12-0	15 A	Screws	Flange	2 Wall (Dual)	8.26 mm	0.325 in	105 C	Polypropylene (PP)	300 VDC	UL94 V-0	14 AWG	22 AWG	Barrier Block	1	12	PC Pin	Chassis Panel Through Hole	12
Curtis Industries 325011-10-0	15 A	Screws	Flange	2 Wall (Dual)	8.26 mm	0.325 in	105 C	Polypropylene (PP)	300 VDC	UL94 V-0	14 AWG	22 AWG	Barrier Block	1	10	PC Pin	Chassis Panel Through Hole	10
Curtis Industries 325011-02-0	15 A	Screws	Flange	2 Wall (Dual)	8.26 mm	0.325 in	105 C	Polypropylene (PP)	300 VDC	UL94 V-0	14 AWG	22 AWG	Barrier Block	1	2	PC Pin	Chassis Panel Through Hole	2
Curtis Industries 325011-26-0	15 A	Screws	Flange	2 Wall (Dual)	8.26 mm	0.325 in	105 C	Polypropylene (PP)	300 VDC	UL94 V-0	14 AWG	22 AWG	Barrier Block	1	26	PC Pin	Chassis Panel Through Hole	26
Curtis Industries 325011-23-0	15 A	Screws	Flange	2 Wall (Dual)	8.26 mm	0.325 in	105 C	Polypropylene (PP)	300 VDC	UL94 V-0	14 AWG	22 AWG	Barrier Block	1	23	PC Pin	Chassis Panel Through Hole		23

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9.49
		10	$ 8.35
LCSC	Piece	1	$ 19.65
		200	$ 7.84
		500	$ 7.58
		1000	$ 7.45

Description

General part information

325011 Series

20 Circuit 0.325" (8.26mm) Barrier Block Connector Screws

Documents

Technical documentation and resources

Datasheet

Terminal Blocks Catalog

Datasheet
