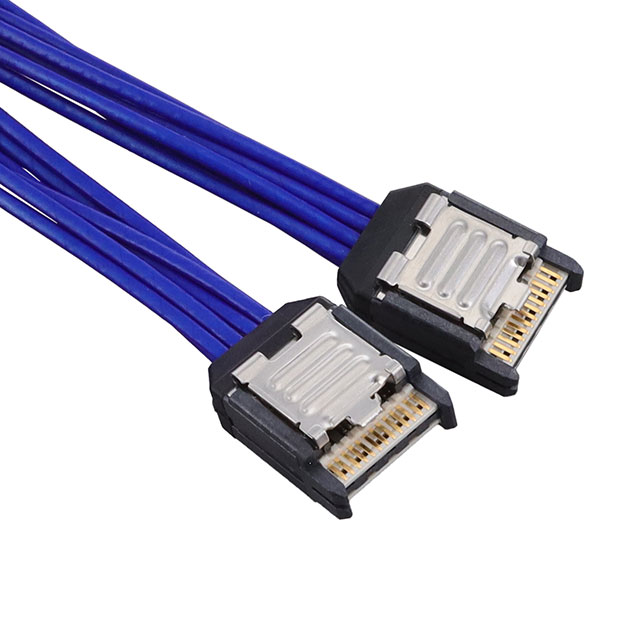

ARC6-08-24.0-LU-LD-2-1

Active

Samtec Inc.

SLIM, DIRECT ATTACH CABLE ASSEMBLY COAXIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ARC6-08-24.0-LU-LD-2-1

Active

Samtec Inc.

SLIM, DIRECT ATTACH CABLE ASSEMBLY COAXIAL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ARC6-08-24.0-LU-LD-2-1

Cable Type	Twin Axial, Flat
Color	Blue
Connector Type	Plug to Plug
Fastening Type	Latch Lock
Frequency - Max [Max]	56 Gbps
Gender	Male to Male
Length [x]	2 '
Length [x]	609.6 mm
Number of Positions	8
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Shielding	Shielded
Usage	Internal
Wire Gauge	34 AWG

ARC6-08 Series

Part	Shielding	Connector Type	Cable Type	Length	Length	Length	Usage	Operating Temperature [Max]	Operating Temperature [Min]	Frequency - Max [Max]	Wire Gauge	Fastening Type	Number of Positions	Gender	Color	Length [x]	Length [x]	Number of Positions	Length [x]
Samtec Inc. ARC6-08-03.0-LU-LU-3-1	Shielded	Plug to Plug	Flat Twin Axial	76.2 mm	0.25 ft	3 "	Internal	125 °C	-40 °C	56 Gbps	34 AWG	Latch Lock	8	Male to Male	Blue
Samtec Inc. ARC6-08-24.0-LU-LU-3-1	Shielded	Plug to Plug	Flat Twin Axial				Internal	125 °C	-40 °C	56 Gbps	34 AWG	Latch Lock	8	Male to Male	Blue	2 '	609.6 mm
Samtec Inc. ARC6-08-03.0-LU-LD-2-1	Shielded	Plug to Plug	Flat Twin Axial	76.2 mm	0.25 ft	3 "	Internal	125 °C	-40 °C	56 Gbps	34 AWG	Latch Lock	8	Male to Male	Blue
Samtec Inc. ARC6-08-12.0-LU-LD-2-1	Shielded	Plug to Plug	Flat Twin Axial	304.8 mm	1 ft		Internal	125 °C	-40 °C	56 Gbps	34 AWG	Latch Lock	8	Male to Male	Blue
Samtec Inc. ARC6-08-24.0-LU-LD-2-1	Shielded	Plug to Plug	Flat Twin Axial				Internal	125 °C	-40 °C	56 Gbps	34 AWG	Latch Lock	8	Male to Male	Blue	2 '	609.6 mm
Samtec Inc. ARC6-08-40.0-LU-LD-2-1	Shielded	Plug to Plug	Flat Twin Axial				Internal	125 °C	-40 °C	56 Gbps	34 AWG	Latch Lock		Male to Male	Blue	3.33 '	1.02 m	16
Samtec Inc. ARC6-08-18.0-LU-LU-3-1	Shielded	Plug to Plug	Flat Twin Axial				Internal	125 °C	-40 °C	56 Gbps	34 AWG	Latch Lock	8	Male to Male	Blue	1.5 ft	457.2 mm
Samtec Inc. ARC6-08-06.0-LU-LU-3-1	Shielded	Plug to Plug	Flat Twin Axial				Internal	125 °C	-40 °C	56 Gbps	34 AWG	Latch Lock	8	Male to Male	Blue	0.5 '	152.4 mm		6 "
Samtec Inc. ARC6-08-20.0-LU-LD-2-1	Shielded	Plug to Plug	Flat Twin Axial	508 mm	1.67 ft		Internal	125 °C	-40 °C	56 Gbps	34 AWG	Latch Lock	8	Male to Male	Blue

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 78.05
		10	$ 60.62
		25	$ 55.10
		50	$ 51.38
		100	$ 48.01

Description

General part information

ARC6-08 Series

8 Position Plug to Plug 2.00' (609.60mm) Blue Shielded
