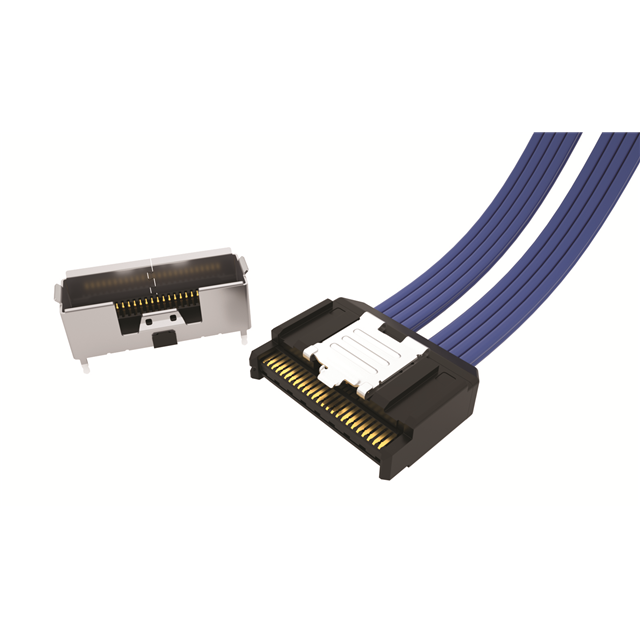

ARC6-08-12.0-LU-LD-2-1

Active

Samtec Inc.

CABLE ACCELERATE M-M 8PAIR 12"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ARC6 Cable Assembly Print

ARC6-08-12.0-LU-LD-2-1

Active

Samtec Inc.

CABLE ACCELERATE M-M 8PAIR 12"

Deep-Dive with AI

DocumentsDatasheet ARC6 Cable Assembly Print

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ARC6-08-12.0-LU-LD-2-1

Cable Type	Twin Axial, Flat
Color	Blue
Connector Type	Plug to Plug
Fastening Type	Latch Lock
Frequency - Max [Max]	56 Gbps
Gender	Male to Male
Length	1 ft
Length	304.8 mm
Number of Positions	8
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Shielding	Shielded
Usage	Internal
Wire Gauge	34 AWG

ARC6-08 Series

Part	Shielding	Connector Type	Cable Type	Length	Length	Length	Usage	Operating Temperature [Max]	Operating Temperature [Min]	Frequency - Max [Max]	Wire Gauge	Fastening Type	Number of Positions	Gender	Color	Length [x]	Length [x]	Number of Positions	Length [x]
Samtec Inc. ARC6-08-03.0-LU-LU-3-1	Shielded	Plug to Plug	Flat Twin Axial	76.2 mm	0.25 ft	3 "	Internal	125 °C	-40 °C	56 Gbps	34 AWG	Latch Lock	8	Male to Male	Blue
Samtec Inc. ARC6-08-24.0-LU-LU-3-1	Shielded	Plug to Plug	Flat Twin Axial				Internal	125 °C	-40 °C	56 Gbps	34 AWG	Latch Lock	8	Male to Male	Blue	2 '	609.6 mm
Samtec Inc. ARC6-08-03.0-LU-LD-2-1	Shielded	Plug to Plug	Flat Twin Axial	76.2 mm	0.25 ft	3 "	Internal	125 °C	-40 °C	56 Gbps	34 AWG	Latch Lock	8	Male to Male	Blue
Samtec Inc. ARC6-08-12.0-LU-LD-2-1	Shielded	Plug to Plug	Flat Twin Axial	304.8 mm	1 ft		Internal	125 °C	-40 °C	56 Gbps	34 AWG	Latch Lock	8	Male to Male	Blue
Samtec Inc. ARC6-08-24.0-LU-LD-2-1	Shielded	Plug to Plug	Flat Twin Axial				Internal	125 °C	-40 °C	56 Gbps	34 AWG	Latch Lock	8	Male to Male	Blue	2 '	609.6 mm
Samtec Inc. ARC6-08-40.0-LU-LD-2-1	Shielded	Plug to Plug	Flat Twin Axial				Internal	125 °C	-40 °C	56 Gbps	34 AWG	Latch Lock		Male to Male	Blue	3.33 '	1.02 m	16
Samtec Inc. ARC6-08-18.0-LU-LU-3-1	Shielded	Plug to Plug	Flat Twin Axial				Internal	125 °C	-40 °C	56 Gbps	34 AWG	Latch Lock	8	Male to Male	Blue	1.5 ft	457.2 mm
Samtec Inc. ARC6-08-06.0-LU-LU-3-1	Shielded	Plug to Plug	Flat Twin Axial				Internal	125 °C	-40 °C	56 Gbps	34 AWG	Latch Lock	8	Male to Male	Blue	0.5 '	152.4 mm		6 "
Samtec Inc. ARC6-08-20.0-LU-LD-2-1	Shielded	Plug to Plug	Flat Twin Axial	508 mm	1.67 ft		Internal	125 °C	-40 °C	56 Gbps	34 AWG	Latch Lock	8	Male to Male	Blue

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 66.04
		10	$ 51.23
		25	$ 46.54
		50	$ 43.38
		100	$ 40.51
		250	$ 37.14

Description

General part information

ARC6-08 Series

8 Position Plug to Plug 1.00' (304.80mm) Blue Shielded

Documents

Technical documentation and resources

Datasheet

ARC6 Cable Assembly Print

Datasheet
