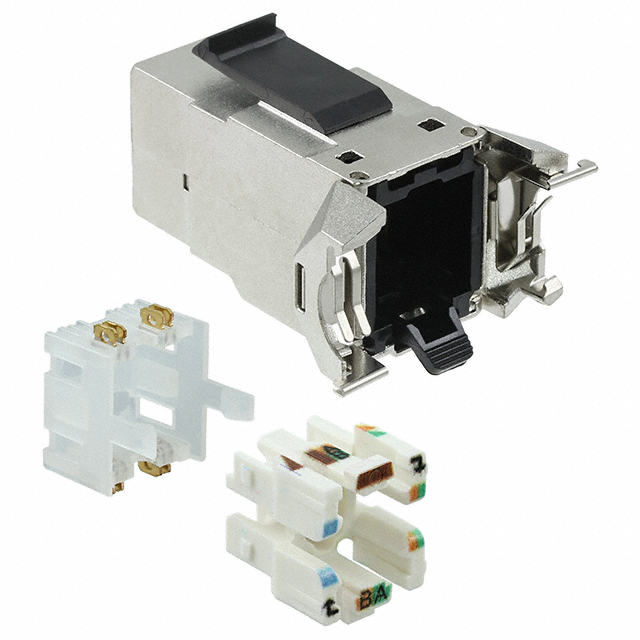

RV6MJKSME-S1

Active

Belden Inc.

REVCONN CAT6+ JACK METAL

Search across all available documentation for this part.

Active

Belden Inc.

REVCONN CAT6+ JACK METAL

Technical Specifications

Parameters and characteristics for this part

Specification	RV6MJKSME-S1

Exterior Contact Finish	Gold
Exterior Contact Finish Thickness	1.27 Ám
Exterior Contact Finish Thickness	50 Áin
Exterior Contact Material	Copper Clad
Exterior Housing Color	Gray
Exterior Type (Adapter End)	Modular Jack 8p8c (RJ45, Ethernet)
Features	Shielded
Interior Contact Finish	Gold
Interior Contact Material	Copper Alloy
Interior Housing Color	White
Interior Type (Adapter End)	Modular Jack 8p8c (RJ45, Ethernet)
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Ratings	Cat6
Style	Modular

Part	Exterior Contact Finish Thickness	Exterior Contact Finish Thickness	Operating Temperature [Min]	Operating Temperature [Max]	Interior Type (Adapter End)	Style	Interior Contact Material	Exterior Type (Adapter End)	Ratings	Exterior Contact Material	Interior Contact Finish	Exterior Contact Finish	Exterior Housing Color	Features	Interior Housing Color	Interior Housing Material	Exterior Housing Material
Belden Inc. RV6MJKSME-S1	1.27 Ám	50 Áin	-10 °C	60 °C	Modular Jack 8p8c (RJ45 Ethernet)	Modular	Copper Alloy	Modular Jack 8p8c (RJ45 Ethernet)	Cat6	Copper Clad	Gold	Gold	Gray	Shielded	White
Belden Inc. RV6MJKSME-B24	1.27 Ám	50 Áin	-10 °C	60 °C	Modular Jack 8p8c (RJ45 Ethernet)	Modular	Copper Alloy	Modular Jack 8p8c (RJ45 Ethernet)	Cat6	Copper Clad	Gold	Gold	Silver		Silver	Zinc Alloy	Zinc Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Insert Modular Jack 8p8c (RJ45, Ethernet) To Modular Jack 8p8c (RJ45, Ethernet) Gray
