Technical Specifications
Parameters and characteristics for this part
| Specification | RV6MJKSME-B24 |
|---|---|
| Exterior Contact Finish | Gold |
| Exterior Contact Finish Thickness | 1.27 Ám |
| Exterior Contact Finish Thickness | 50 Áin |
| Exterior Contact Material | Copper Clad |
| Exterior Housing Color | Silver |
| Exterior Housing Material | Zinc Alloy |
| Exterior Type (Adapter End) | Modular Jack 8p8c (RJ45, Ethernet) |
| Interior Contact Finish | Gold |
| Interior Contact Material | Copper Alloy |
| Interior Housing Color | Silver |
| Interior Housing Material | Zinc Alloy |
| Interior Type (Adapter End) | Modular Jack 8p8c (RJ45, Ethernet) |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -10 °C |
| Ratings | Cat6 |
| Style | Modular |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 302.00 | |
| 10 | $ 279.85 | |||
Description
General part information
RV6MJKS Series

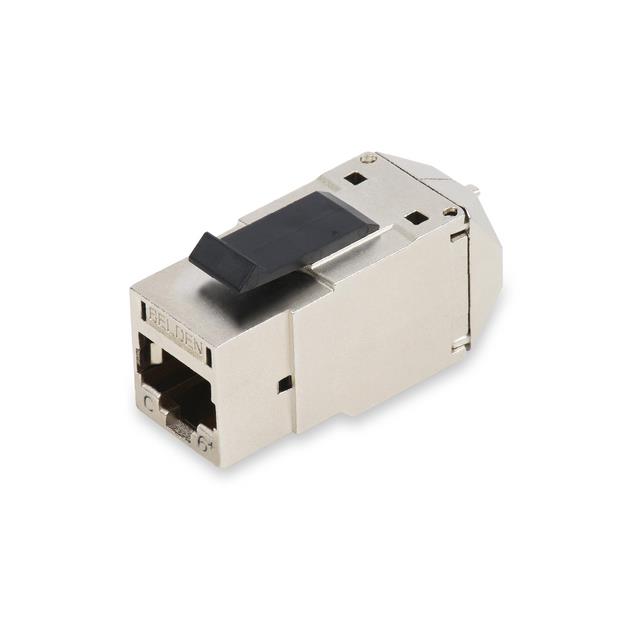

Insert Modular Jack 8p8c (RJ45, Ethernet) To Modular Jack 8p8c (RJ45, Ethernet) Silver
Documents
Technical documentation and resources
