0801639
ActivePhoenix Contact

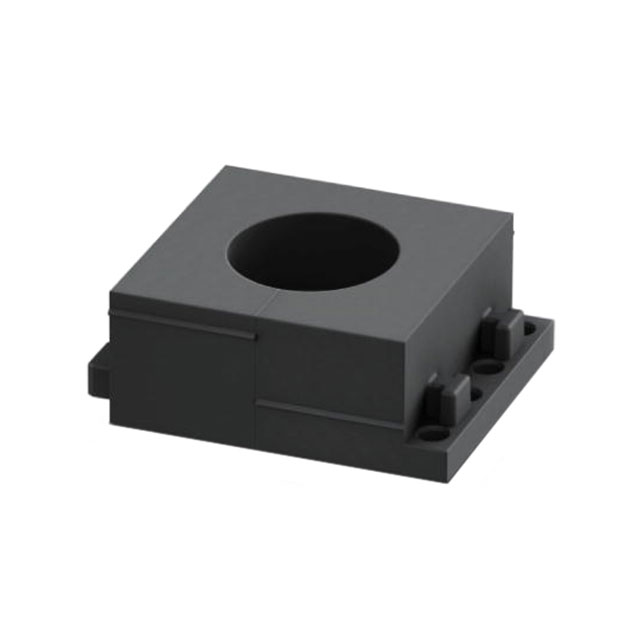

FRAME GROMMET RUBBER BLACK
Deep-Dive with AI
Search across all available documentation for this part.
0801639
ActivePhoenix Contact
FRAME GROMMET RUBBER BLACK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0801639 |
|---|---|
| Bushing, Grommet Type | Frame Grommet |
| Color | Black |
| Diameter - Inside [Max] [diameter] | 24 mm |
| Diameter - Inside [Max] [diameter] | 0.945 in |
| Diameter - Inside [Min] [diameter] | 0.906 in |
| Diameter - Inside [Min] [diameter] | 23 mm |
| Features | Locking Latch, Water Resistant, Dust Protected, IP54, Screw Locking |
| For Use With/Related Products | Wires, Cable |
| Material | Nitrile Butadiene Rubber (NBR), Halogen Free |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.93 | |
| 10 | $ 6.16 | |||
| 50 | $ 5.62 | |||
| 100 | $ 5.39 | |||
| 250 | $ 4.93 | |||
| 500 | $ 4.62 | |||
| 1000 | $ 4.23 | |||
Description
General part information
CES-LRG Series
Frame Grommet 0.906" ~ 0.945" (23.00mm ~ 24.00mm) Black
Documents
Technical documentation and resources
No documents available
