0801643

Active

Phoenix Contact

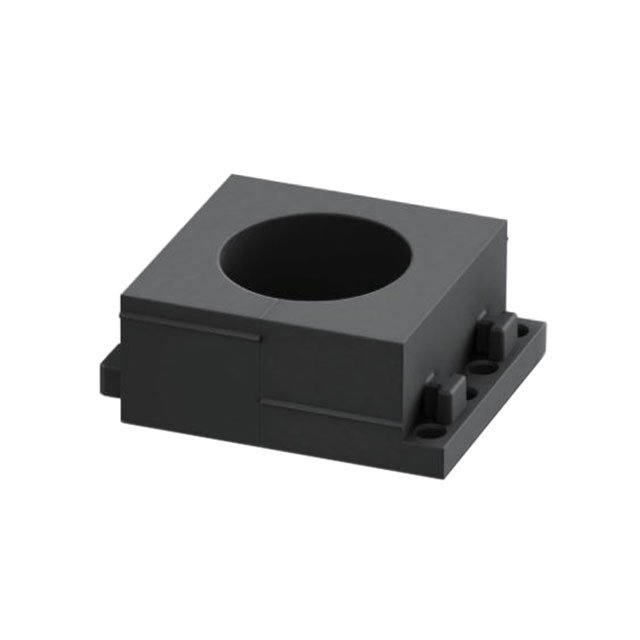

FRAME GROMMET RUBBER BLACK

Deep-Dive with AI

Search across all available documentation for this part.

0801643

Active

Phoenix Contact

FRAME GROMMET RUBBER BLACK

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0801643

Bushing, Grommet Type	Frame Grommet
Color	Black
Diameter - Inside [Max] [diameter]	1.024 in
Diameter - Inside [Max] [diameter]	26 mm
Diameter - Inside [Min] [diameter]	25 mm
Diameter - Inside [Min] [diameter]	0.984 "
Features	Locking Latch, Water Resistant, Dust Protected, IP54, Screw Locking
For Use With/Related Products	Wires, Cable
Material	Nitrile Butadiene Rubber (NBR), Halogen Free

CES-LRG Series

Part	For Use With/Related Products	Bushing, Grommet Type	Material	Color	Diameter - Inside [Max] [diameter]	Diameter - Inside [Max] [diameter]	Diameter - Inside [Min] [diameter]	Diameter - Inside [Min] [diameter]	Features	Diameter - Inside [Max] [diameter]	Diameter - Inside [Min] [diameter]	Diameter - Inside
Phoenix Contact 0801640	Cable Wires	Frame Grommet	Halogen Free Nitrile Butadiene Rubber (NBR)	Black	0.984 "	25 mm	0.945 "	24 mm	Dust Protected IP54 Locking Latch Screw Locking Water Resistant
Phoenix Contact 0801646	Cable Wires	Frame Grommet	Halogen Free Nitrile Butadiene Rubber (NBR)	Black	1.102 in	28 mm	1.063 in	27 mm	Dust Protected IP54 Locking Latch Screw Locking Water Resistant
Phoenix Contact 0801624	Cable Wires	Frame Grommet	Halogen Free Nitrile Butadiene Rubber (NBR)	Black	0.669 in 17 mm		0.63 in 16 mm		Dust Protected IP54 Locking Latch Screw Locking Water Resistant
Phoenix Contact 0801650	Cable Wires	Frame Grommet	Halogen Free Nitrile Butadiene Rubber (NBR)	Black	1.181 "	30 mm	1.142 "	29 mm	Dust Protected IP54 Locking Latch Screw Locking Water Resistant
Phoenix Contact 0801638	Cable Wires	Frame Grommet	Halogen Free Nitrile Butadiene Rubber (NBR)	Black		0.906 in		0.866 in	Dust Protected IP54 Locking Latch Screw Locking Water Resistant	23 mm	22 mm
Phoenix Contact 0801626	Cable Wires	Frame Grommet	Halogen Free Nitrile Butadiene Rubber (NBR)	Black	0.709 in		0.669 in	17 mm	Dust Protected IP54 Locking Latch Screw Locking Water Resistant	18 mm
Phoenix Contact 0801654	Cable Wires	Frame Grommet	Halogen Free Nitrile Butadiene Rubber (NBR)	Black	1.26 in		1.22 in		Dust Protected IP54 Locking Latch Screw Locking Water Resistant			31 mm 32 mm
Phoenix Contact 0801643	Cable Wires	Frame Grommet	Halogen Free Nitrile Butadiene Rubber (NBR)	Black	1.024 in	26 mm	0.984 "	25 mm	Dust Protected IP54 Locking Latch Screw Locking Water Resistant
Phoenix Contact 0801648	Cable Wires	Frame Grommet	Halogen Free Nitrile Butadiene Rubber (NBR)	Black	1.142 "	29 mm	1.102 "	28 mm	Dust Protected IP54 Locking Latch Screw Locking Water Resistant
Phoenix Contact 0801639	Cable Wires	Frame Grommet	Halogen Free Nitrile Butadiene Rubber (NBR)	Black	0.945 in		0.906 in	23 mm	Dust Protected IP54 Locking Latch Screw Locking Water Resistant	24 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.94

Description

General part information

CES-LRG Series

Frame Grommet 0.984" ~ 1.024" (25.00mm ~ 26.00mm) Black

Documents

Technical documentation and resources

No documents available
