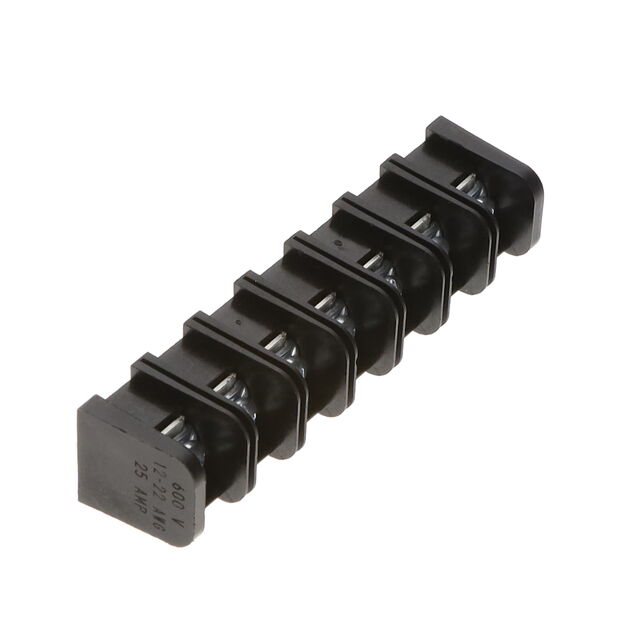

0386345107

Active

Molex

CONN BARRIER STRIP 7CIRC 0.438"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

0386345107

Active

Molex

CONN BARRIER STRIP 7CIRC 0.438"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0386345107

Barrier Type	3 Wall (Tri)
Bottom Termination	PC Pin
Color	Black
Current Rating (Amps)	15 A
Material - Insulation	Polybutylene Terephthalate (PBT)
Mounting Type	Through Hole
Number of Circuits	7
Number of Rows	1
Number of Wire Entries	7
Pitch [x]	11.12 mm
Pitch [x]	0.438 in
Terminal Block Type	Barrier Block
Terminal Screw Finish	Zinc, Clear Chromate
Terminal Screw Material	Steel
Top Termination	Screws with Captive Plate
Voltage Rating	600 V
Wire Gauge [Max]	24 AWG
Wire Gauge [Min]	12 AWG

038634 Series

Part	Material - Insulation	Terminal Screw Material	Barrier Type	Color	Number of Circuits	Voltage Rating	Material Flammability Rating	Wire Gauge [Min]	Wire Gauge [Max]	Bottom Termination	Terminal Screw Finish	Mounting Type	Pitch [x]	Pitch [x]	Current Rating (Amps)	Terminal Block Type	Number of Wire Entries	Features	Top Termination	Operating Temperature	Number of Rows
Molex 0386344207	Thermoplastic	Steel	2 Wall (Dual)	Black	7	600 V	UL94 V-0	12 AWG	24 AWG	PC Pin	Clear Chromate Zinc	Chassis Panel Through Hole	11.12 mm	0.438 in	15 A	Barrier Block	7	Flange	Screws	110 °C	1
Molex 0386345004	Thermoplastic	Steel	2 Wall (Dual)	Black	4	600 V	UL94 V-0	12 AWG	24 AWG	PC Pin	Clear Chromate Zinc	Chassis Panel Through Hole	11.12 mm	0.438 in	15 A	Barrier Block	4	Flange	Screws with Captive Plate	110 °C	1
Molex 0386345009	Thermoplastic	Steel	2 Wall (Dual)	Black		600 V	UL94 V-0	12 AWG	24 AWG	PC Pin	Clear Chromate Zinc	Chassis Panel Through Hole	11.12 mm	0.438 in	15 A	Barrier Block	9	Flange	Screws with Captive Plate	110 °C	1
Molex 0386345107	Polybutylene Terephthalate (PBT)	Steel	3 Wall (Tri)	Black	7	600 V		12 AWG	24 AWG	PC Pin	Clear Chromate Zinc	Through Hole	11.12 mm	0.438 in	15 A	Barrier Block	7		Screws with Captive Plate		1
Molex 0386345110	Polybutylene Terephthalate (PBT)	Steel	3 Wall (Tri)	Black	10	600 V		12 AWG	24 AWG	PC Pin	Clear Chromate Zinc	Through Hole	11.12 mm	0.438 in	15 A	Barrier Block	10		Screws with Captive Plate		1
Molex 0386345007	Thermoplastic	Steel	2 Wall (Dual)	Black	7	600 V	UL94 V-0	12 AWG	24 AWG	PC Pin	Clear Chromate Zinc	Chassis Panel Through Hole	11.12 mm	0.438 in	15 A	Barrier Block	7	Flange	Screws with Captive Plate	110 °C	1
Molex 0386345015	Thermoplastic	Steel	2 Wall (Dual)	Black	15	600 V	UL94 V-0	12 AWG	24 AWG	PC Pin	Clear Chromate Zinc	Chassis Panel Through Hole	11.12 mm	0.438 in	15 A	Barrier Block	15	Flange	Screws with Captive Plate	110 °C	1
Molex 0386345103	Polybutylene Terephthalate (PBT)	Steel	3 Wall (Tri)	Black	3	600 V		12 AWG	24 AWG	PC Pin	Clear Chromate Zinc	Through Hole	11.12 mm	0.438 in	15 A	Barrier Block	3		Screws with Captive Plate		1
Molex 0386348302	Polybutylene Terephthalate (PBT) Polyester	Steel	2 Wall (Dual)	Black	2	600 V		12 AWG	24 AWG	Wire Wrap	Clear Chromate Zinc	Through Hole	11.12 mm	0.438 in	15 A	Barrier Block	2		Screws		1
Molex 0386345104	Polybutylene Terephthalate (PBT)	Steel	3 Wall (Tri)	Black	4	600 V		12 AWG	24 AWG	PC Pin	Clear Chromate Zinc	Through Hole	11.12 mm	0.438 in	15 A	Barrier Block	4		Screws with Captive Plate		1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.29
		10	$ 7.10
		25	$ 6.77
		50	$ 6.09
		170	$ 5.77
		340	$ 5.23
		510	$ 4.86
		1020	$ 4.59

Description

General part information

038634 Series

7 Circuit 0.438" (11.12mm) Barrier Block Connector Screws with Captive Plate
