0386345104
ActiveMolex

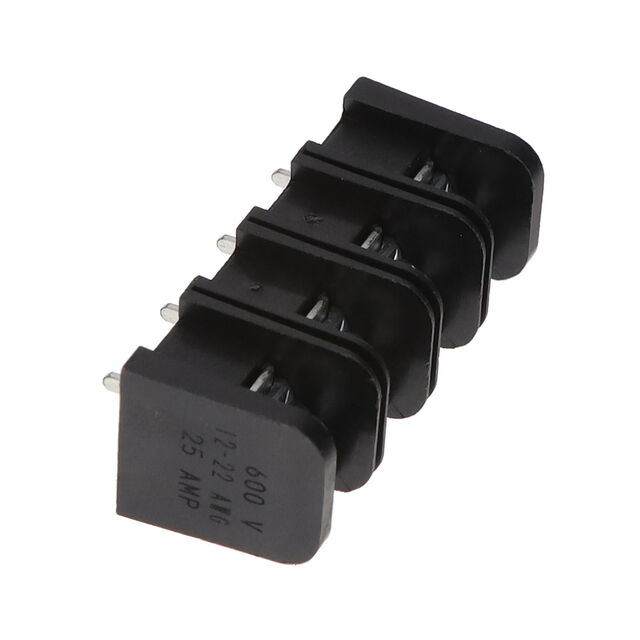

CONN BARRIER STRIP 4CIRC 0.438"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
0386345104
ActiveMolex
CONN BARRIER STRIP 4CIRC 0.438"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 0386345104 |
|---|---|
| Barrier Type | 3 Wall (Tri) |
| Bottom Termination | PC Pin |
| Color | Black |
| Current Rating (Amps) | 15 A |
| Material - Insulation | Polybutylene Terephthalate (PBT) |
| Mounting Type | Through Hole |
| Number of Circuits | 4 |
| Number of Rows | 1 |
| Number of Wire Entries | 4 |
| Pitch [x] | 11.12 mm |
| Pitch [x] | 0.438 in |
| Terminal Block Type | Barrier Block |
| Terminal Screw Finish | Zinc, Clear Chromate |
| Terminal Screw Material | Steel |
| Top Termination | Screws with Captive Plate |
| Voltage Rating | 600 V |
| Wire Gauge [Max] | 24 AWG |
| Wire Gauge [Min] | 12 AWG |
038634 Series
| Part | Material - Insulation | Terminal Screw Material | Barrier Type | Color | Number of Circuits | Voltage Rating | Material Flammability Rating | Wire Gauge [Min] | Wire Gauge [Max] | Bottom Termination | Terminal Screw Finish | Mounting Type | Pitch [x] | Pitch [x] | Current Rating (Amps) | Terminal Block Type | Number of Wire Entries | Features | Top Termination | Operating Temperature | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Molex | Thermoplastic | Steel | 2 Wall (Dual) | Black | 7 | 600 V | UL94 V-0 | 12 AWG | 24 AWG | PC Pin | Clear Chromate Zinc | Chassis Panel Through Hole | 11.12 mm | 0.438 in | 15 A | Barrier Block | 7 | Flange | Screws | 110 °C | 1 |
Molex | Thermoplastic | Steel | 2 Wall (Dual) | Black | 4 | 600 V | UL94 V-0 | 12 AWG | 24 AWG | PC Pin | Clear Chromate Zinc | Chassis Panel Through Hole | 11.12 mm | 0.438 in | 15 A | Barrier Block | 4 | Flange | Screws with Captive Plate | 110 °C | 1 |
Molex | Thermoplastic | Steel | 2 Wall (Dual) | Black | 600 V | UL94 V-0 | 12 AWG | 24 AWG | PC Pin | Clear Chromate Zinc | Chassis Panel Through Hole | 11.12 mm | 0.438 in | 15 A | Barrier Block | 9 | Flange | Screws with Captive Plate | 110 °C | 1 | |
Molex | Polybutylene Terephthalate (PBT) | Steel | 3 Wall (Tri) | Black | 7 | 600 V | 12 AWG | 24 AWG | PC Pin | Clear Chromate Zinc | Through Hole | 11.12 mm | 0.438 in | 15 A | Barrier Block | 7 | Screws with Captive Plate | 1 | |||
Molex | Polybutylene Terephthalate (PBT) | Steel | 3 Wall (Tri) | Black | 10 | 600 V | 12 AWG | 24 AWG | PC Pin | Clear Chromate Zinc | Through Hole | 11.12 mm | 0.438 in | 15 A | Barrier Block | 10 | Screws with Captive Plate | 1 | |||
Molex | Thermoplastic | Steel | 2 Wall (Dual) | Black | 7 | 600 V | UL94 V-0 | 12 AWG | 24 AWG | PC Pin | Clear Chromate Zinc | Chassis Panel Through Hole | 11.12 mm | 0.438 in | 15 A | Barrier Block | 7 | Flange | Screws with Captive Plate | 110 °C | 1 |
Molex | Thermoplastic | Steel | 2 Wall (Dual) | Black | 15 | 600 V | UL94 V-0 | 12 AWG | 24 AWG | PC Pin | Clear Chromate Zinc | Chassis Panel Through Hole | 11.12 mm | 0.438 in | 15 A | Barrier Block | 15 | Flange | Screws with Captive Plate | 110 °C | 1 |
Molex | Polybutylene Terephthalate (PBT) | Steel | 3 Wall (Tri) | Black | 3 | 600 V | 12 AWG | 24 AWG | PC Pin | Clear Chromate Zinc | Through Hole | 11.12 mm | 0.438 in | 15 A | Barrier Block | 3 | Screws with Captive Plate | 1 | |||
Molex | Polybutylene Terephthalate (PBT) Polyester | Steel | 2 Wall (Dual) | Black | 2 | 600 V | 12 AWG | 24 AWG | Wire Wrap | Clear Chromate Zinc | Through Hole | 11.12 mm | 0.438 in | 15 A | Barrier Block | 2 | Screws | 1 | |||
Molex | Polybutylene Terephthalate (PBT) | Steel | 3 Wall (Tri) | Black | 4 | 600 V | 12 AWG | 24 AWG | PC Pin | Clear Chromate Zinc | Through Hole | 11.12 mm | 0.438 in | 15 A | Barrier Block | 4 | Screws with Captive Plate | 1 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.81 | |
| 10 | $ 3.35 | |||
| 25 | $ 3.06 | |||
| 50 | $ 2.90 | |||
| 100 | $ 2.78 | |||
| 250 | $ 2.67 | |||
| 500 | $ 2.61 | |||
| 1000 | $ 2.57 | |||
Description
General part information
038634 Series
4 Circuit 0.438" (11.12mm) Barrier Block Connector Screws with Captive Plate
