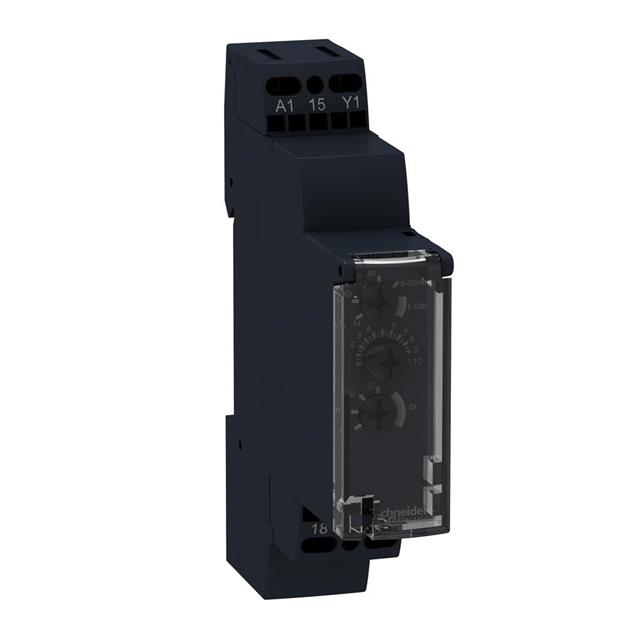

RE17RMEMU

Active

SQUARE D BY SCHNEIDER ELECTRIC

TIME DELAY RELAY, SPDT, 10H, 250VAC

Search across all available documentation for this part.

Active

SQUARE D BY SCHNEIDER ELECTRIC

TIME DELAY RELAY, SPDT, 10H, 250VAC

Technical Specifications

Parameters and characteristics for this part

Specification	RE17RMEMU

Contact Rating @ Voltage	250 VAC, 8 A
Delay Time [Max]	10 Hrs
Delay Time [Min]	0.1 Sec
Function	Programmable (Multi-Function)
Mounting Type	DIN Rail
Relay Type	Mechanical Relay
Termination Style	Screw Terminal
Timing Adjustment Method	Screwdriver Slot
Timing Initiate Method	Input Voltage
Voltage - Supply [Max]	240 VAC
Voltage - Supply [Min]	24 VAC

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Timing Adjustment Method	Termination Style	Timing Initiate Method	Contact Rating @ Voltage	Relay Type	Delay Time [Max]	Delay Time [Min]	Mounting Type	Function	Voltage - Supply
SQUARE D BY SCHNEIDER ELECTRIC RE17RLMUS	24 VAC	240 VAC	Screwdriver Slot	Spring Terminal	Input Voltage	8 A 250 VAC	Solid State Relay	100 Hrs	0.1 Sec	DIN Rail	Repeat Cycle Twin Timer
SQUARE D BY SCHNEIDER ELECTRIC RE17RLMU	24 VAC	240 VAC	Screwdriver Slot	Screw Terminal	Input Voltage	8 A 250 VAC	Mechanical Relay	100 Hrs	0.1 Sec	DIN Rail	Repeat Cycle Twin Timer
SQUARE D BY SCHNEIDER ELECTRIC RE17RMEMU	24 VAC	240 VAC	Screwdriver Slot	Screw Terminal	Input Voltage	8 A 250 VAC	Mechanical Relay	10 Hrs	0.1 Sec	DIN Rail	Programmable (Multi-Function)
SQUARE D BY SCHNEIDER ELECTRIC RE17RCMU	24 VAC	240 VAC	Screwdriver Slot	Screw Terminal	Input Voltage	8 A 250 VAC	Mechanical Relay	100 Hrs	0.1 Sec	DIN Rail	Off-Delay
SQUARE D BY SCHNEIDER ELECTRIC RE17RLJU			Screwdriver Slot	Screw Terminal	Input Voltage	8 A 250 VAC	Mechanical Relay	100 Hrs	0.1 Sec	DIN Rail	Repeat Cycle Twin Timer	12 VAC
SQUARE D BY SCHNEIDER ELECTRIC RE17RAMU	24 VAC	240 VAC	Screwdriver Slot	Screw Terminal	Input Voltage	8 A 250 VAC	Mechanical Relay	100 Hrs	0.1 Sec	DIN Rail	On-Delay
SQUARE D BY SCHNEIDER ELECTRIC RE17RMXMU	24 VAC	240 VAC	Screwdriver Slot	Screw Terminal	Input Voltage Trigger Signal	8 A 250 VAC	Solid State Relay	100 Hrs	0.1 Sec	DIN Rail	Programmable (Multi-Function)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Programmable (Multi-Function) Time Delay Relay SPDT (1 Form C) 0.1 Sec ~ 10 Hrs Delay 8A @ 250VAC DIN Rail

Technical documentation and resources
