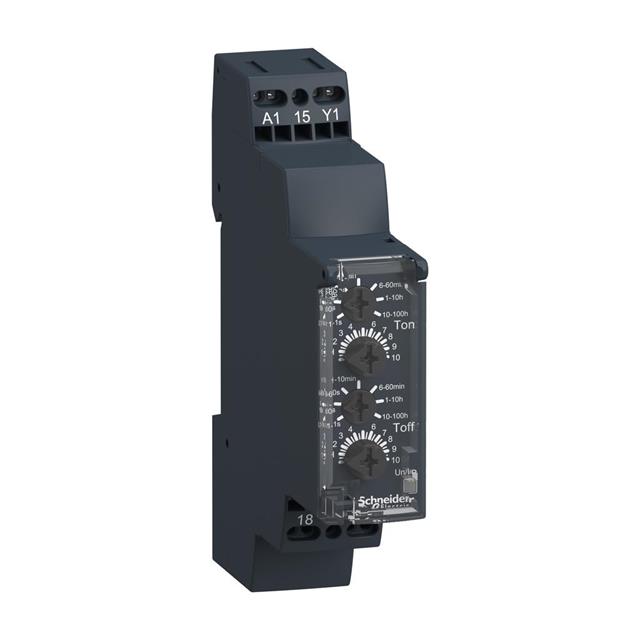

RE17RLMUS

Obsolete

SQUARE D BY SCHNEIDER ELECTRIC

RELAY TIME DELAY 100HR 8A 250V

Search across all available documentation for this part.

Obsolete

SQUARE D BY SCHNEIDER ELECTRIC

RELAY TIME DELAY 100HR 8A 250V

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Supply [Min]	Voltage - Supply [Max]	Timing Adjustment Method	Termination Style	Timing Initiate Method	Contact Rating @ Voltage	Relay Type	Delay Time [Max]	Delay Time [Min]	Mounting Type	Function	Voltage - Supply
SQUARE D BY SCHNEIDER ELECTRIC RE17RLMUS	24 VAC	240 VAC	Screwdriver Slot	Spring Terminal	Input Voltage	8 A 250 VAC	Solid State Relay	100 Hrs	0.1 Sec	DIN Rail	Repeat Cycle Twin Timer
SQUARE D BY SCHNEIDER ELECTRIC RE17RLMU	24 VAC	240 VAC	Screwdriver Slot	Screw Terminal	Input Voltage	8 A 250 VAC	Mechanical Relay	100 Hrs	0.1 Sec	DIN Rail	Repeat Cycle Twin Timer
SQUARE D BY SCHNEIDER ELECTRIC RE17RMEMU	24 VAC	240 VAC	Screwdriver Slot	Screw Terminal	Input Voltage	8 A 250 VAC	Mechanical Relay	10 Hrs	0.1 Sec	DIN Rail	Programmable (Multi-Function)
SQUARE D BY SCHNEIDER ELECTRIC RE17RCMU	24 VAC	240 VAC	Screwdriver Slot	Screw Terminal	Input Voltage	8 A 250 VAC	Mechanical Relay	100 Hrs	0.1 Sec	DIN Rail	Off-Delay
SQUARE D BY SCHNEIDER ELECTRIC RE17RLJU			Screwdriver Slot	Screw Terminal	Input Voltage	8 A 250 VAC	Mechanical Relay	100 Hrs	0.1 Sec	DIN Rail	Repeat Cycle Twin Timer	12 VAC
SQUARE D BY SCHNEIDER ELECTRIC RE17RAMU	24 VAC	240 VAC	Screwdriver Slot	Screw Terminal	Input Voltage	8 A 250 VAC	Mechanical Relay	100 Hrs	0.1 Sec	DIN Rail	On-Delay
SQUARE D BY SCHNEIDER ELECTRIC RE17RMXMU	24 VAC	240 VAC	Screwdriver Slot	Screw Terminal	Input Voltage Trigger Signal	8 A 250 VAC	Solid State Relay	100 Hrs	0.1 Sec	DIN Rail	Programmable (Multi-Function)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Repeat Cycle, Twin Timer Time Delay Relay SPDT (1 Form C) 0.1 Sec ~ 100 Hrs Delay 8A @ 250VAC DIN Rail
