HDF-R62-113L011

Active

MH Connectors

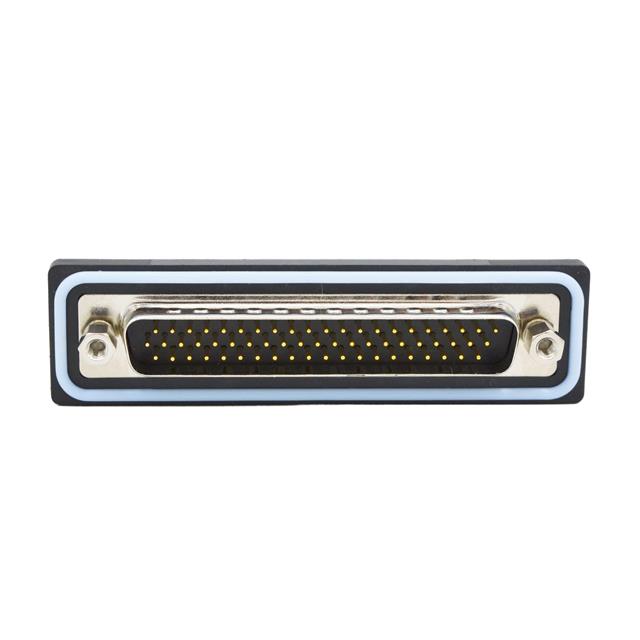

CONN D-SUB HD PLUG 62P R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HDF-R62-113L011

Active

MH Connectors

CONN D-SUB HD PLUG 62P R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HDF-R62-113L011

Color	Black
Connector Style	High Density, D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polybutylene Terephthalate (PBT)
Features	Grounding Indents
Flange Feature	Female Screwlock (4-40), Mating Side
Ingress Protection	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	62
Number of Rows	3
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	4
Termination	Solder

HDF-R62 Series

Part	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Color	Connector Style	Features	Termination	Contact Type	Shell Material, Finish	Flange Feature	Number of Positions	Material Flammability Rating	Ingress Protection	Mounting Type	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Current Rating (Amps)	Contact Finish	Shell Size, Connector Layout	Dielectric Material	Contact Material	Contact Finish Thickness
MH Connectors HDF-R62-213L462	3	-25 °C	85 °C	Black	D-Sub High Density	Board Lock Mounting Brackets	Solder	Signal	Nickel Plated Steel	Female Screwlock (4-40) Mating Side	62	UL94 V-0	IP67 - Dust Tight Waterproof	Panel Mount Right Angle Through Hole	Receptacle Female Sockets	0.76 Ám	30 Áin	3 A	Gold	4	Polybutylene Terephthalate (PBT)	Brass
MH Connectors HDF-R62-113L462	3	-25 °C	85 °C	Black	D-Sub High Density	Board Lock Grounding Indents Mounting Brackets	Solder	Signal	Nickel Plated Steel	Female Screwlock (4-40) Mating Side	62	UL94 V-0	IP67 - Dust Tight Waterproof	Panel Mount Right Angle Through Hole	Male Pins Plug	0.76 Ám	30 Áin	3 A	Gold	4	Polybutylene Terephthalate (PBT)	Brass
MH Connectors HDF-R62-213L012	3	-25 °C	85 °C	Black	D-Sub High Density		Solder	Signal	Nickel Plated Steel	Female Screwlock (4-40) Mating Side	62	UL94 V-0	IP67 - Dust Tight Waterproof	Panel Mount Right Angle Through Hole	Receptacle Female Sockets	0.76 Ám	30 Áin	3 A	Gold	4	Polybutylene Terephthalate (PBT)	Brass
MH Connectors HDF-R62-113L012	3	-25 °C	85 °C	Black	D-Sub High Density	Grounding Indents	Solder	Signal	Nickel Plated Steel	Female Screwlock (4-40) Mating Side	62	UL94 V-0	IP67 - Dust Tight Waterproof	Panel Mount Right Angle Through Hole	Male Pins Plug	0.76 Ám	30 Áin	3 A	Gold	4	Polybutylene Terephthalate (PBT)	Brass
MH Connectors HDF-R62-113L461	3	-25 °C	85 °C	Black	D-Sub High Density	Board Lock Grounding Indents Mounting Brackets	Solder	Signal	Nickel Plated Steel	Female Screwlock (4-40) Mating Side	62	UL94 V-0	IP67 - Dust Tight Waterproof	Panel Mount Right Angle Through Hole	Male Pins Plug			3 A	Gold	4	Polybutylene Terephthalate (PBT)	Brass	Flash
MH Connectors HDF-R62-213L461	3	-25 °C	85 °C	Black	D-Sub High Density	Board Lock Mounting Brackets	Solder	Signal	Nickel Plated Steel	Female Screwlock (4-40) Mating Side	62	UL94 V-0	IP67 - Dust Tight Waterproof	Panel Mount Right Angle Through Hole	Receptacle Female Sockets			3 A	Gold	4	Polybutylene Terephthalate (PBT)	Brass	Flash
MH Connectors HDF-R62-113L011	3	-25 °C	85 °C	Black	D-Sub High Density	Grounding Indents	Solder	Signal	Nickel Plated Steel	Female Screwlock (4-40) Mating Side	62	UL94 V-0	IP67 - Dust Tight Waterproof	Panel Mount Right Angle Through Hole	Male Pins Plug			3 A	Gold	4	Polybutylene Terephthalate (PBT)	Brass	Flash
MH Connectors HDF-R62-213L011	3	-25 °C	85 °C	Black	D-Sub High Density		Solder	Signal	Nickel Plated Steel	Female Screwlock (4-40) Mating Side	62	UL94 V-0	IP67 - Dust Tight Waterproof	Panel Mount Right Angle Through Hole	Receptacle Female Sockets			3 A	Gold	4	Polybutylene Terephthalate (PBT)	Brass	Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 17.72
		10	$ 13.66
		25	$ 12.55

Description

General part information

HDF-R62 Series

62 Position D-Sub, High Density Plug, Male Pins Connector
