HDF-R62-213L012
ActiveMH Connectors

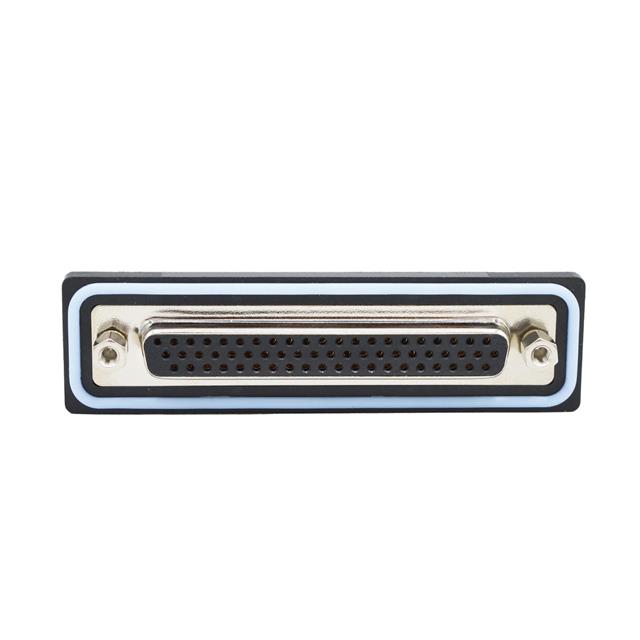

D SUB CONNECTOR, IP67, HIGH DENSITY, RECEPTACLE, NANOOK SERIES, 62 CONTACTS, DC, SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
HDF-R62-213L012
ActiveMH Connectors
D SUB CONNECTOR, IP67, HIGH DENSITY, RECEPTACLE, NANOOK SERIES, 62 CONTACTS, DC, SOLDER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HDF-R62-213L012 |
|---|---|
| Color | Black |
| Connector Style | High Density, D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Contact Material | Brass |
| Contact Type | Signal |
| Current Rating (Amps) | 3 A |
| Dielectric Material | Polybutylene Terephthalate (PBT) |
| Flange Feature | Female Screwlock (4-40), Mating Side |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle, Panel Mount |
| Number of Positions | 62 |
| Number of Rows | 3 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Shell Material, Finish | Nickel Plated, Steel |
| Shell Size, Connector Layout | 4 |
| Termination | Solder |
HDF-R62 Series
| Part | Number of Rows | Operating Temperature [Min] | Operating Temperature [Max] | Color | Connector Style | Features | Termination | Contact Type | Shell Material, Finish | Flange Feature | Number of Positions | Material Flammability Rating | Ingress Protection | Mounting Type | Connector Type | Contact Finish Thickness | Contact Finish Thickness | Current Rating (Amps) | Contact Finish | Shell Size, Connector Layout | Dielectric Material | Contact Material | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MH Connectors | 3 | -25 °C | 85 °C | Black | D-Sub High Density | Board Lock Mounting Brackets | Solder | Signal | Nickel Plated Steel | Female Screwlock (4-40) Mating Side | 62 | UL94 V-0 | IP67 - Dust Tight Waterproof | Panel Mount Right Angle Through Hole | Receptacle Female Sockets | 0.76 Ám | 30 Áin | 3 A | Gold | 4 | Polybutylene Terephthalate (PBT) | Brass | |
MH Connectors | 3 | -25 °C | 85 °C | Black | D-Sub High Density | Board Lock Grounding Indents Mounting Brackets | Solder | Signal | Nickel Plated Steel | Female Screwlock (4-40) Mating Side | 62 | UL94 V-0 | IP67 - Dust Tight Waterproof | Panel Mount Right Angle Through Hole | Male Pins Plug | 0.76 Ám | 30 Áin | 3 A | Gold | 4 | Polybutylene Terephthalate (PBT) | Brass | |
MH Connectors | 3 | -25 °C | 85 °C | Black | D-Sub High Density | Solder | Signal | Nickel Plated Steel | Female Screwlock (4-40) Mating Side | 62 | UL94 V-0 | IP67 - Dust Tight Waterproof | Panel Mount Right Angle Through Hole | Receptacle Female Sockets | 0.76 Ám | 30 Áin | 3 A | Gold | 4 | Polybutylene Terephthalate (PBT) | Brass | ||
MH Connectors | 3 | -25 °C | 85 °C | Black | D-Sub High Density | Grounding Indents | Solder | Signal | Nickel Plated Steel | Female Screwlock (4-40) Mating Side | 62 | UL94 V-0 | IP67 - Dust Tight Waterproof | Panel Mount Right Angle Through Hole | Male Pins Plug | 0.76 Ám | 30 Áin | 3 A | Gold | 4 | Polybutylene Terephthalate (PBT) | Brass | |
MH Connectors | 3 | -25 °C | 85 °C | Black | D-Sub High Density | Board Lock Grounding Indents Mounting Brackets | Solder | Signal | Nickel Plated Steel | Female Screwlock (4-40) Mating Side | 62 | UL94 V-0 | IP67 - Dust Tight Waterproof | Panel Mount Right Angle Through Hole | Male Pins Plug | 3 A | Gold | 4 | Polybutylene Terephthalate (PBT) | Brass | Flash | ||
MH Connectors | 3 | -25 °C | 85 °C | Black | D-Sub High Density | Board Lock Mounting Brackets | Solder | Signal | Nickel Plated Steel | Female Screwlock (4-40) Mating Side | 62 | UL94 V-0 | IP67 - Dust Tight Waterproof | Panel Mount Right Angle Through Hole | Receptacle Female Sockets | 3 A | Gold | 4 | Polybutylene Terephthalate (PBT) | Brass | Flash | ||
MH Connectors | 3 | -25 °C | 85 °C | Black | D-Sub High Density | Grounding Indents | Solder | Signal | Nickel Plated Steel | Female Screwlock (4-40) Mating Side | 62 | UL94 V-0 | IP67 - Dust Tight Waterproof | Panel Mount Right Angle Through Hole | Male Pins Plug | 3 A | Gold | 4 | Polybutylene Terephthalate (PBT) | Brass | Flash | ||
MH Connectors | 3 | -25 °C | 85 °C | Black | D-Sub High Density | Solder | Signal | Nickel Plated Steel | Female Screwlock (4-40) Mating Side | 62 | UL94 V-0 | IP67 - Dust Tight Waterproof | Panel Mount Right Angle Through Hole | Receptacle Female Sockets | 3 A | Gold | 4 | Polybutylene Terephthalate (PBT) | Brass | Flash |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
HDF-R62 Series
62 Position D-Sub, High Density Receptacle, Female Sockets Connector
