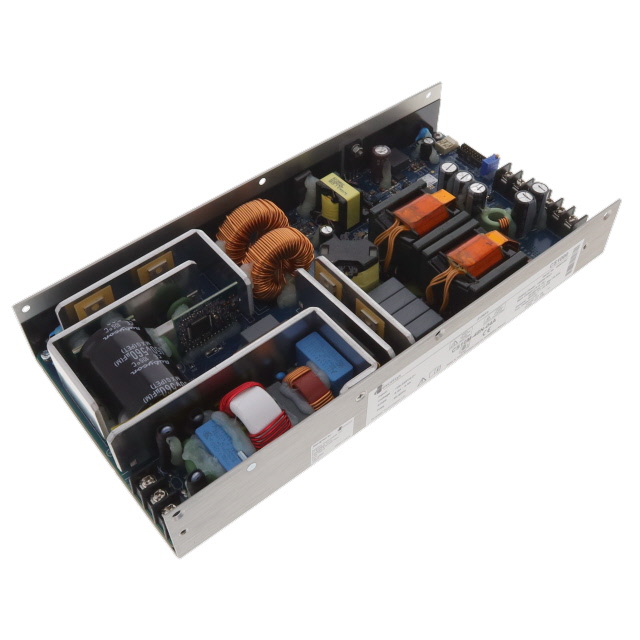

CS1000M-48N-04A

Active

EXCELSYS / Advanced Energy

AC/DC CONVERTER 48V 1000W

Search across all available documentation for this part.

Active

EXCELSYS / Advanced Energy

AC/DC CONVERTER 48V 1000W

Technical Specifications

Parameters and characteristics for this part

Specification	CS1000M-48N-04A

Applications	ITE (Commercial), Medical
Approval Agency	IEC, UL, EN, CSA
Current - Output 1	20.8 A
Efficiency	95 %
Features	PFC, PMBus™, Adjustable Output, Remote Sense, Universal Input
Minimum Load Required	True
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	1 kW
Size / Dimension [x]	261.6 mm
Size / Dimension [x]	10.3 "
Size / Dimension [y]	127 mm
Size / Dimension [y]	5 "
Size / Dimension [z]	39.1 mm
Size / Dimension [z]	1.54 "
Standard Number	60601-1, 62368-1
Type	Enclosed
Voltage - Isolation	4000 V
Voltage - Output 1	48 V

Part	Standard Number	Efficiency	Mounting Type	Applications	Approval Agency	Type	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Minimum Load Required	Features	Voltage - Output 1	Current - Output 1	Power (Watts)	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Isolation
EXCELSYS / Advanced Energy CS1000M-48N-04A	60601-1 62368-1	95 %	Chassis Mount	ITE (Commercial) Medical	CSA EN IEC UL	Enclosed	127 mm	39.1 mm	1.54 "	5 "	261.6 mm	10.3 "		Adjustable Output PFC PMBus™ Remote Sense Universal Input	48 V	20.8 A	1 kW	1	85 °C	-40 °C	4000 V
EXCELSYS / Advanced Energy CS1000M-24N-04A	60601-1 62368-1	94 %	Chassis Mount	ITE (Commercial) Medical	CSA EN IEC UL	Enclosed	127 mm	39.1 mm	1.54 "	5 "	261.6 mm	10.3 "		Adjustable Output PFC PMBus™ Remote Sense Universal Input	24 V	41.6 A	1 kW	1	85 °C	-40 °C	4000 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 526.35

General part information

Enclosed AC DC Converters 1 Output 48V 85 ~ 264 VAC Input
