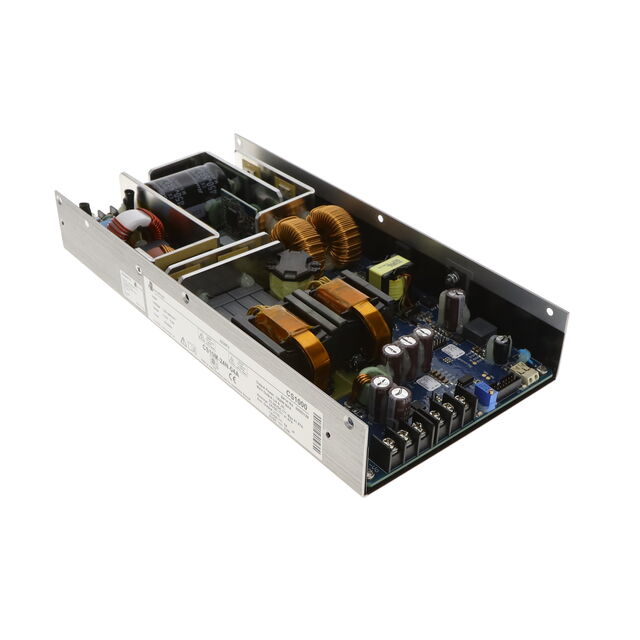

CS1000M-24N-04A
ActiveEXCELSYS / Advanced Energy
AC/DC CONVERTER 24V 1000W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CS1000M-24N-04A
ActiveEXCELSYS / Advanced Energy
AC/DC CONVERTER 24V 1000W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CS1000M-24N-04A |
|---|---|
| Applications | ITE (Commercial), Medical |
| Approval Agency | IEC, UL, EN, CSA |
| Current - Output 1 | 41.6 A |
| Efficiency | 94 % |
| Features | PFC, PMBus™, Adjustable Output, Remote Sense, Universal Input |
| Minimum Load Required | True |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 1 kW |
| Size / Dimension [x] | 261.6 mm |
| Size / Dimension [x] | 10.3 " |
| Size / Dimension [y] | 127 mm |
| Size / Dimension [y] | 5 " |
| Size / Dimension [z] | 39.1 mm |
| Size / Dimension [z] | 1.54 " |
| Standard Number | 60601-1, 62368-1 |
| Type | Enclosed |
| Voltage - Isolation | 4000 V |
| Voltage - Output 1 | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 721.12 | |
| 10 | $ 674.59 | |||
Description
General part information
CS1000M Series
Enclosed AC DC Converters 1 Output 24V 85 ~ 264 VAC Input
