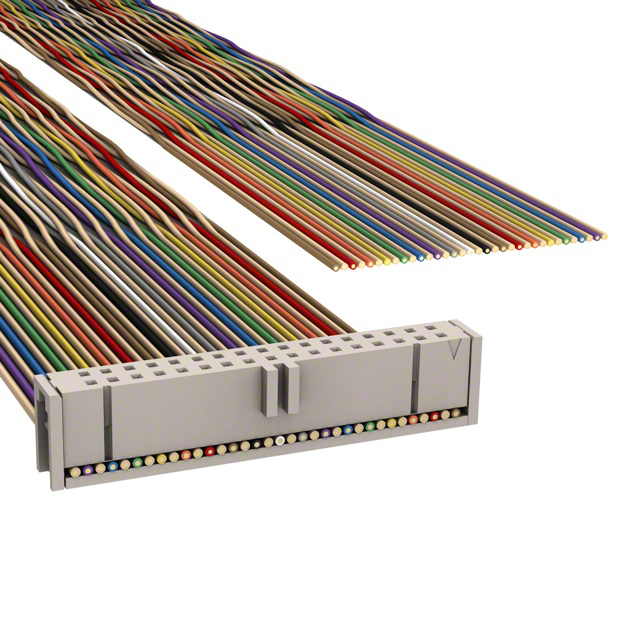

M1CXA-3440K

Active

3M (TC)

IDC CABLE - MKC34A/MC34F/X

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 891 Series Datasheet +1

M1CXA-3440K

Active

3M (TC)

IDC CABLE - MKC34A/MC34F/X

Deep-Dive with AI

DocumentsDatasheet 891 Series Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M1CXA-3440K

Cable Termination	IDC
Color	Multiple, Twisted Pair (Flat)
Connector Type	Socket to Cable
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Polarizing Key
Length [x]	1.02 m
Length [x]	3.34 ft
Number of Positions	34
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

M1CXA Series

Part	Contact Finish Thickness	Contact Finish Thickness	Pitch - Connector	Pitch - Connector	Connector Type	Features	Length [x]	Length [x]	Color	Contact Finish	Cable Termination	Number of Positions	Pitch - Cable	Pitch - Cable	Number of Rows	Shielding	Number of Positions
3M (TC) M1CXA-1036R	0.76 Ám	30 Áin	0.1 in	2.54 mm	Socket to Cable	Polarizing Key	3 ft	914.4 mm	Multiple Ribbon	Gold	IDC	10	0.05 "	1.27 mm	2	Unshielded
3M (TC) M1CXA-2636R	0.76 Ám	30 Áin	0.1 in	2.54 mm	Socket to Cable	Polarizing Key	3 ft	914.4 mm	Multiple Ribbon	Gold	IDC	26	0.05 "	1.27 mm	2	Unshielded
3M (TC) M1CXA-2640K	0.76 Ám	30 Áin	0.1 in	2.54 mm	Socket to Cable	Polarizing Key	3.34 ft	1.02 m	Multiple Twisted Pair (Flat)	Gold	IDC	26	0.05 "	1.27 mm	2	Unshielded
3M (TC) M1CXA-1636R	0.76 Ám	30 Áin	0.1 in	2.54 mm	Socket to Cable	Polarizing Key	3 ft	914.4 mm	Multiple Ribbon	Gold	IDC		0.05 "	1.27 mm	2	Unshielded	16
3M (TC) M1CXA-3036R	0.76 Ám	30 Áin	0.1 in	2.54 mm	Socket to Cable	Polarizing Key	3 ft	914.4 mm	Multiple Ribbon	Gold	IDC	30	0.05 "	1.27 mm	2	Unshielded
3M (TC) M1CXA-5036J	0.76 Ám	30 Áin	0.1 in	2.54 mm	Socket to Cable	Polarizing Key	3 ft	914.4 mm		Gold	IDC	50	0.05 "	1.27 mm	2	Unshielded
3M (TC) M1CXA-3440K	0.76 Ám	30 Áin	0.1 in	2.54 mm	Socket to Cable	Polarizing Key	3.34 ft	1.02 m	Multiple Twisted Pair (Flat)	Gold	IDC	34	0.05 "	1.27 mm	2	Unshielded
3M (TC) M1CXA-2436R	0.76 Ám	30 Áin	0.1 in	2.54 mm	Socket to Cable	Polarizing Key	3 ft	914.4 mm	Multiple Ribbon	Gold	IDC	24	0.05 "	1.27 mm	2	Unshielded
3M (TC) M1CXA-2436J	0.76 Ám	30 Áin	0.1 in	2.54 mm	Socket to Cable	Polarizing Key	3 ft	914.4 mm		Gold	IDC	24	0.05 "	1.27 mm	2	Unshielded
3M (TC) M1CXA-2636J	0.76 Ám	30 Áin	0.1 in	2.54 mm	Socket to Cable	Polarizing Key	3 ft	914.4 mm		Gold	IDC	26	0.05 "	1.27 mm	2	Unshielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 19.07
		10	$ 14.68
		25	$ 13.28
		50	$ 12.34
		100	$ 11.48
		250	$ 10.47
		500	$ 9.79
		1000	$ 9.19

Description

General part information

M1CXA Series

34 Position Cable Assembly Rectangular Socket to Cable 3.34' (1.02m)

Documents

Technical documentation and resources

Datasheet

891 Series Datasheet

Datasheet

1700 Series

Datasheet
