M1CXA-3036R

Active

3M (TC)

IDC CABLE - MKC30A/MC34M/X

Deep-Dive with AI

Search across all available documentation for this part.

Documents891 Series Datasheet Datasheet +1

M1CXA-3036R

Active

3M (TC)

IDC CABLE - MKC30A/MC34M/X

Deep-Dive with AI

Documents891 Series Datasheet Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M1CXA-3036R

Cable Termination	IDC
Color	Ribbon, Multiple
Connector Type	Socket to Cable
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Polarizing Key
Length [x]	3 ft
Length [x]	914.4 mm
Number of Positions	30
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

M1CXA Series

Part	Contact Finish Thickness	Contact Finish Thickness	Pitch - Connector	Pitch - Connector	Connector Type	Features	Length [x]	Length [x]	Color	Contact Finish	Cable Termination	Number of Positions	Pitch - Cable	Pitch - Cable	Number of Rows	Shielding	Number of Positions
3M (TC) M1CXA-1036R	0.76 Ám	30 Áin	0.1 in	2.54 mm	Socket to Cable	Polarizing Key	3 ft	914.4 mm	Multiple Ribbon	Gold	IDC	10	0.05 "	1.27 mm	2	Unshielded
3M (TC) M1CXA-2636R	0.76 Ám	30 Áin	0.1 in	2.54 mm	Socket to Cable	Polarizing Key	3 ft	914.4 mm	Multiple Ribbon	Gold	IDC	26	0.05 "	1.27 mm	2	Unshielded
3M (TC) M1CXA-2640K	0.76 Ám	30 Áin	0.1 in	2.54 mm	Socket to Cable	Polarizing Key	3.34 ft	1.02 m	Multiple Twisted Pair (Flat)	Gold	IDC	26	0.05 "	1.27 mm	2	Unshielded
3M (TC) M1CXA-1636R	0.76 Ám	30 Áin	0.1 in	2.54 mm	Socket to Cable	Polarizing Key	3 ft	914.4 mm	Multiple Ribbon	Gold	IDC		0.05 "	1.27 mm	2	Unshielded	16
3M (TC) M1CXA-3036R	0.76 Ám	30 Áin	0.1 in	2.54 mm	Socket to Cable	Polarizing Key	3 ft	914.4 mm	Multiple Ribbon	Gold	IDC	30	0.05 "	1.27 mm	2	Unshielded
3M (TC) M1CXA-5036J	0.76 Ám	30 Áin	0.1 in	2.54 mm	Socket to Cable	Polarizing Key	3 ft	914.4 mm		Gold	IDC	50	0.05 "	1.27 mm	2	Unshielded
3M (TC) M1CXA-3440K	0.76 Ám	30 Áin	0.1 in	2.54 mm	Socket to Cable	Polarizing Key	3.34 ft	1.02 m	Multiple Twisted Pair (Flat)	Gold	IDC	34	0.05 "	1.27 mm	2	Unshielded
3M (TC) M1CXA-2436R	0.76 Ám	30 Áin	0.1 in	2.54 mm	Socket to Cable	Polarizing Key	3 ft	914.4 mm	Multiple Ribbon	Gold	IDC	24	0.05 "	1.27 mm	2	Unshielded
3M (TC) M1CXA-2436J	0.76 Ám	30 Áin	0.1 in	2.54 mm	Socket to Cable	Polarizing Key	3 ft	914.4 mm		Gold	IDC	24	0.05 "	1.27 mm	2	Unshielded
3M (TC) M1CXA-2636J	0.76 Ám	30 Áin	0.1 in	2.54 mm	Socket to Cable	Polarizing Key	3 ft	914.4 mm		Gold	IDC	26	0.05 "	1.27 mm	2	Unshielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 14.36
		10	$ 11.04
		25	$ 9.98
		50	$ 9.26
		100	$ 8.61
		250	$ 7.85
		500	$ 7.33
		1000	$ 6.86

Description

General part information

M1CXA Series

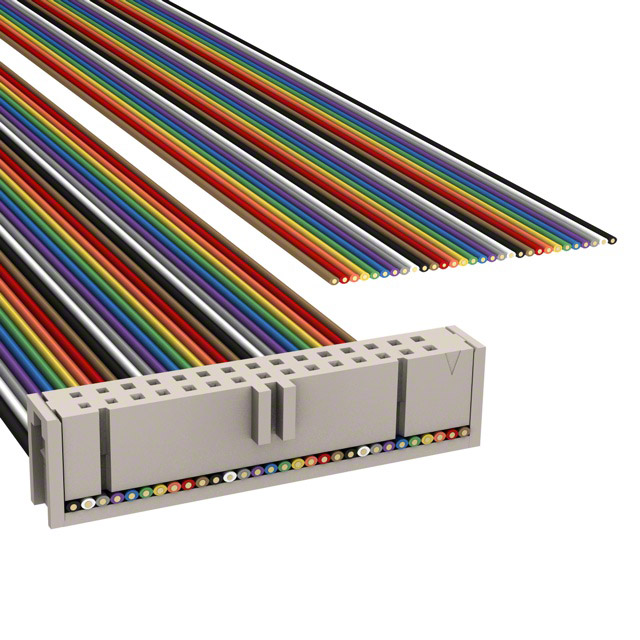

30 Position Cable Assembly Rectangular Socket to Cable 3.00' (914.40mm)

Documents

Technical documentation and resources

891 Series Datasheet

Datasheet

3302 Series

Datasheet
